DNT Optics HS650 Hydra 640-50 Multi-Function Thermal Scope User Manual

1. Selelekela

The DNT Optics HS650 Hydra is a versatile multi-function thermal device designed for various applications. It can operate as a standalone thermal scope, a clip-on thermal attachment for existing optics, or a handheld thermal monocular. This manual provides essential information for the proper setup, operation, and maintenance of your HS650 Hydra device.

2. Sehlahisoa Overview

2.1 Likarolo tsa Bohlokoa

3-in-1 mefuta-futa: Functions as a standalone scope, clip-on attachment, and handheld monocular.
Elite Thermal Imaging: Features a 12 µm, ≤18 mK uncooled infrared sensor with a 640×512 resolution and 50mm objective lens.
AI-Powered Image Super Resolution (ISR): Enhances image clarity and detail, especially at higher digital zoom levels.
Kaho e Mathata: IP67-rated for waterproof and dustproof protection, shock-resistant housing handles recoil up to .50BMG.
DNT App Connectivity: Connects to your smartphone for live feed viewing, management, editing, and sharing of content.

2.2 Likahare tsa Sephutheloana

Netefatsa hore lintho tsohle li teng ka har'a sephutheloana sa hau:

HS650 Thermal Scope ×1
PMS (Picatinny 0 MOA Short) Mount ×1
Eye Cup ×1
Flip Up Cover ×1
18650 Flat Top Battery ×2
Battery Charger ×1
Thapo ea USB × 2
Bukana ea mosebelisi ×1
Lens Cleaning Cloth ×1

2.3 Visual Overview

Figure 1: DNT Optics HS650 Hydra Thermal Scope, main view with 0 MOA mount.

Figure 2: DNT Optics HS650 Hydra Thermal Scope, front angled view.

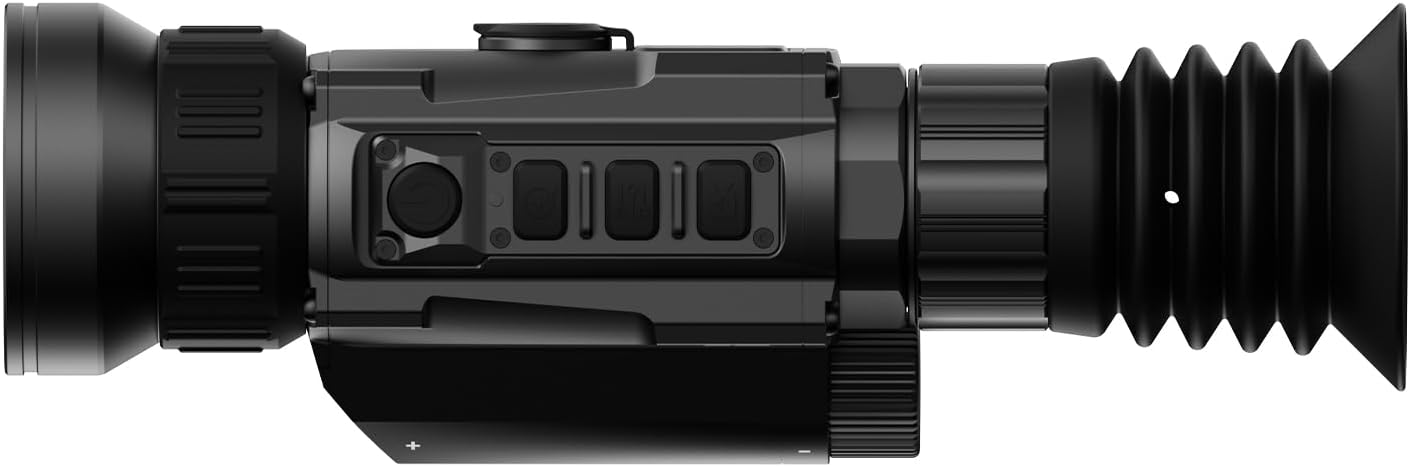

Figure 3: DNT Optics HS650 Hydra Thermal Scope, side view ho bonts'a litsamaiso.

Figure 4: DNT Optics HS650 Hydra Thermal Scope, rear view with eyepiece.

DNT Optics HS650 Hydra Thermal Scope, close-up of mounting screws — Setšoantšo sa 5: Haufi view of the mounting interface with torque specifications.

DNT Optics HS650 Hydra Thermal Scope with Quick Detach Mount — Figure 6: DNT Optics HS650 Hydra Thermal Scope shown with an optional Quick Detach Mount (QDM150).

DNT Optics HS650 Hydra Thermal Scope with Standard Quick Detach Mount — Figure 7: DNT Optics HS650 Hydra Thermal Scope shown with an optional Standard Quick Detach Mount (QDS150).

3. Seta

3.1 Ho kenya Betri

Fumana sebaka sa betri sesebelisoa.
Insert two 18650 Flat Top Batteries, ensuring correct polarity.
Koala kamore ea betri ka mokhoa o sireletsehileng.

3.2 Likhetho tsa ho phahamisa

The HS650 Hydra can be used in several configurations:

Standalone Scope: Attach the provided PMS (Picatinny 0 MOA Short) mount to a compatible rail system. Ensure all screws are tightened to the recommended torque.
Clip-On: Utilize an appropriate quick-detach mount (e.g., DNT QDM150 or QDS150, sold separately) to attach the device in front of your primary optic.
Handheld Monocular: Use the device without any mounting for portable observation.

3.3 Initial Power-On and App Connection

Tobetsa 'me u tšoare konopo ea matla ho bulela sesebelisoa.
Download the DNT App on your smartphone.
Follow the in-app instructions to connect your HS650 Hydra to your smartphone for live viewing and feature control.

Video 1: Demonstration of the DNT Optics Hydra in handheld monocular mode. This video illustrates the physical handling and portability of the device when used as a monocular.

4. Litaelo tsa Ts'ebetso

4.1 Litaolo tsa Motheo

Refer to the device's physical buttons for power, menu navigation, zoom, and recording functions. Detailed button assignments are available in the full user manual.

4.2 Thermal Imaging Modes

The HS650 Hydra offers various thermal imaging modes to optimize viewing for different environments and preferences. These typically include:

Tlhaho: Provides a balanced thermal view.
Enhanced: Increases contrast for better detail recognition.
Totobatsa: Emphasizes hot spots for quick target identification.

Video 2: This video demonstrates the different thermal imaging modes available on the DNT Optics Hydra, showcasing how each mode alters the visual representation of heat signatures for various viewmaemo.

4.3 Image Super Resolution (ISR)

The AI-Powered Image Super Resolution (ISR) feature enhances image detail, especially when using digital zoom. This feature can be toggled on or off via the device menu or connected app.

Video 3: A short demonstration of the Image Super Resolution (ISR) feature on the Hydra-1, showing the visual improvement when ISR is activated.

Video 4: Another demonstration of the Image Super Resolution (ISR) feature on the Hydra-2, highlighting its effect on image clarity.

Video 5: Kakaretso e qaqilengview of the Image Super Resolution (ISR) technology in the Hydra series, illustrating its impact on image quality and detail.

4.4 Zoom ea Dijithale

The HS650 Hydra features a 2.5x base magnification with digital zoom capabilities up to 10x. Use the designated zoom buttons to adjust magnification levels.

Video 6: This video provides a performance comparison across different Hydra series models at 100 yards, showcasing the image quality and zoom capabilities of each device, including the HS650.

4.5 Recoil Actived Video

The device supports Recoil Activated Video recording, which automatically captures footage when recoil is detected. This ensures important moments are recorded without manual intervention.

5. Tlhokomelo

5.1 Ho hloekisa

Use the provided lens cleaning cloth to gently wipe the objective and eyepiece lenses. Avoid abrasive materials.
For the device body, use a soft, damp lesela la ho tlosa ditshila le matlakala.

5.2 Tšireletso ea Tikoloho

The HS650 Hydra is IP67-rated, meaning it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes. While robust, avoid unnecessary exposure to extreme conditions.

5.3 Polokelo

Store the device in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries if storing for extended periods.

6. Ho rarolla mathata

If you encounter issues with your DNT Optics HS650 Hydra, consider the following:

Sesebelisoa ha se sebetse: Check battery charge and ensure batteries are inserted with correct polarity.
Boleng bo bobe ba setšoantšo: Ensure lenses are clean. Adjust focus and brightness settings. Verify ISR is enabled if desired.
Mathata a khokahano ea app: Ensure Bluetooth/Wi-Fi is enabled on your smartphone and the device. Restart both the device and the app.
Mounting stability: Re-check all mounting screws for proper tightness.

For further assistance, please contact DNT Optics customer support.

7. Litlhaloso

Brand	DNT Optics
Lebitso la Mohlala	HS650
Setaele	640-50
Mmala	Ntsho
Litekanyo tsa Sehlahisoa	8.4"L x 2.7"W x 2.2"H
Boima ba Ntho	1.02 pounds (16.3 ounces)
Lintho tse bonahalang	Metal or High-Quality Plastic
Boikemisetso ba lense bophara	68.58 limilimithara
Bonyane Bonyane	2.5 x
Lisebelisoa tse lumellanang	Rifle, Shotgun, Handgun
Mofuta oa ho Beha	PMS - Picatinny 0 MOA Short
Pono ya Bosiu	No (Thermal Imaging)
Mofuta oa Reticle	Dijithale

8. Tiisetso le Tšehetso

For information regarding product warranty, returns, or technical support, please refer to the official DNT Optics website or contact their customer service directly. Contact details can typically be found on the manufacturer's packaging or websebaka.

You can visit the DNT Optics Store for more information: DNT Optics Store
