Selelekela
This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your Logitech Ergo K860 wireless ergonomic keyboard. Designed for comfort and efficiency, the Ergo K860 aims to enhance your typing experience and promote better posture. Please read this guide thoroughly to maximize the benefits of your new keyboard.
1. Seta
Follow these steps to prepare your Logitech Ergo K860 for use.
1.1 Ho kenya Betri
The Logitech Ergo K860 uses two AAA batteries. Locate the battery compartment on the underside of the keyboard, open the cover, insert the batteries according to the polarity indicators, and close the cover securely.
1.2 Likhetho tsa khokahano
The Ergo K860 offers two primary connection methods: the included USB receiver (Logi Bolt) or Bluetooth Low Energy.
- USB Receiver (Logi Bolt): Plug the Logi Bolt USB receiver into an available USB port on your computer. The keyboard should automatically connect.
- Bluetooth Low Energy:
- Bulela keyboard.
- Press and hold one of the Easy-Switch keys (1, 2, or 3) for three seconds until the LED indicator blinks rapidly. This puts the keyboard in pairing mode.
- On your computer, navigate to Bluetooth settings and select "Logitech Ergo K860" from the list of available devices to pair.
1.3 Logitech Options Software
For full customization and advanced features, download and install the Logitech Options software from the official Logitech website. This software allows you to personalize key assignments, create application-specific profiles, and adjust various settings.
Image 1: The Logitech Ergo K860 wireless ergonomic keyboard, showcasing its split key layout and integrated wrist rest. This image illustrates the overall design and form factor of the device.
2. Ergonomic Design Features
The Ergo K860 is engineered to promote a more natural typing posture and reduce strain.
- Split Keyboard Layout: The keys are divided into two sections, allowing your hands and wrists to rest at a more natural angle, reducing ulnar deviation.
- Curved Keyframe: The gentle curve of the keyboard helps to align your forearms and wrists, further enhancing comfort.
- Integrated Wrist Rest: A padded wrist rest provides support for your forearms, reducing wrist extension and promoting a neutral wrist position.
- Adjustable Palm Lift: Two adjustable palm lift settings (0°, -4°, -7°) allow you to customize the angle of the keyboard to suit your preference and desk setup, ensuring optimal wrist posture whether sitting or standing.
3. Ho sebetsa Keyboard
Understanding the key functions and customization options will help you optimize your workflow.
3.1 Mesebetsi ea Bohlokoa
- Linotlolo tsa Mosebetsi (F1-F12): These keys perform standard functions. They can also be configured for media control or other shortcuts via the Logitech Options software.
- Linotlolo tsa Taolo ea Mecha: Dedicated keys for volume control, play/pause, and track navigation are typically integrated into the function row or as secondary functions.
- Easy-Switch Keys (1, 2, 3): Use these keys to quickly switch between up to three paired devices (e.g., computer, tablet, smartphone).
- Contextual Keys: Some keys may have secondary functions indicated by icons. These can often be customized.
3.2 Customization with Logitech Options
The Logitech Options software unlocks the full potential of your Ergo K860.
- Key Assignments: Reassign specific keys to perform different actions or launch applications.
- Application-Specific Profiles: Create unique key assignments and settings that automatically activate when you use certain applications (e.g., different shortcuts for a word processor versus a design program).
- Flow Feature: If you have a compatible Logitech mouse, Logitech Flow allows you to seamlessly control multiple computers with a single keyboard and mouse, even copying and pasting content between them.
4. Tlhokomelo
Proper care ensures the longevity and performance of your keyboard.
- Ho hloekisa:
- Disconnect the keyboard from your computer or turn it off before cleaning.
- Sebelisa lesela le bonolo, le se nang lint ha bobebe dampened with water or an alcohol-based cleaner (70% isopropyl alcohol).
- Qoba ho fafatsa metsi ka ho toba ho keyboard.
- For debris between keys, use compressed air.
- Tlhokomelo ea Betri:
- Replace batteries when the low battery indicator illuminates.
- Remove batteries if the keyboard will not be used for an extended period to prevent leakage.
- Lahla libeteri tse sebelisitsoeng ka boikarabelo ho latela melao ea sebaka.
5. Ho Rarolla Mathata a Tloaelehileng
If you encounter problems with your Ergo K860, try the following solutions.
- Keyboard Ha e hokahane:
- Ensure the keyboard is turned on and batteries are correctly installed and charged.
- For USB receiver: Try plugging the receiver into a different USB port or a different computer to rule out port issues.
- For Bluetooth: Ensure Bluetooth is enabled on your computer. Try unpairing and re-pairing the keyboard.
- Move the keyboard closer to the receiver or computer to reduce interference.
- Keys Not Responding or Lagging:
- Sheba boemo ba betri 'me u e khutlisetse ha ho hlokahala.
- Clean around the affected keys to remove any debris.
- Qala komporo ea hau bocha.
- If using Logitech Options, try uninstalling and reinstalling the software.
- Logitech Options Software Issues:
- Ensure you have the latest version of Logitech Options installed.
- Restart the software or your computer.
- Check for conflicting software that might interfere with keyboard drivers.
6. Litlhaloso
General specifications for the Logitech Ergo K860 keyboard.
- Khokahano: Bluetooth Low Energy, Logi Bolt USB receiver
- Wireless Range: Ho fihla ho limithara tse 10 (maoto a 33)
- Mofuta oa Leshala: 2 x AAA libetri
- Bophelo ba Battery: Up to 2 years (may vary based on usage)
- Mabone a Indicator: Battery status, Easy-Switch keys
- Likarolo tsa Ergonomic: Split keyframe, curved design, integrated wrist rest, adjustable palm lift
- Tšebelisano: Windows, macOS, Linux, Chrome OS, Android, iOS/iPadOS

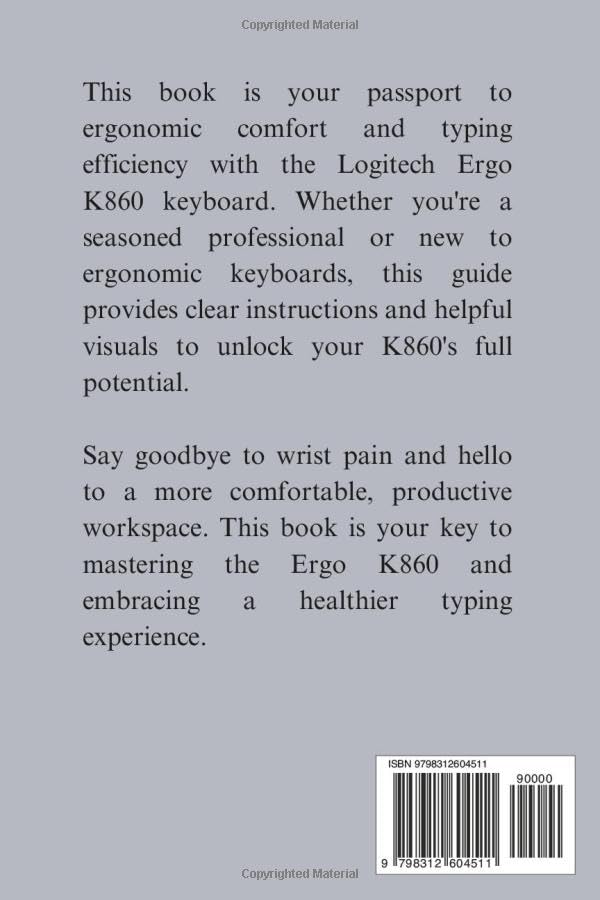

Image 2: Text from the back of the manual, emphasizing ergonomic comfort and typing efficiency with the Logitech Ergo K860 keyboard. It highlights the guide's role in unlocking the keyboard's full potential and promoting a healthier typing experience.
7. Tiisetso le Tšehetso
For detailed warranty information and technical support, please refer to the official Logitech website or contact Logitech customer service. You can typically find product registration, FAQs, driver downloads, and contact options on their support pages.
Official Logitech Support: www.logitech.com/support
