Selelekela
This manual provides detailed instructions for the safe and effective use of your Ourlife 5K30FPS WiFi Action Camera. Please read this manual thoroughly before operating the device to ensure optimal performance and longevity.
The Ourlife M40TR is a versatile action camera designed to capture high-quality video and photos in various environments, including underwater, thanks to its robust waterproof casing. It features 5K 30fps video recording, a dual-screen display, a 170-degree wide-angle lens, and Wi-Fi connectivity.
Se ka Lebokoseng
Ha o bula lebokose, ka kopo netefatsa hore likarolo tsohle li teng:
- Ourlife M40TR Action Camera
- Taba e sa keneleng metsi
- Mounting Accessories
- USB Charging Cable
- Bukana ea mosebelisi (tokomane ena)
- Remote Control (if included with specific package)
Setšoantšo: Ourlife M40TR Action Camera shown with its waterproof housing and a small remote control. This image illustrates the primary components included with the camera.
Sehlahisoa se Felletseview
Familiarize yourself with the camera's main components and interfaces.
- Skrine se ka pele: 1.3-inch display for quick status checks.
- Rear Screen: 2.0-inch IPS touch screen for menu navigation and playback.
- Lense: 170-degree wide-angle lens.
- Konopo ea Matla / Mokhoa: Used to power on/off and switch between modes.
- Konopo ea Shutter/OK: Used to start/stop recording or take photos, and confirm selections.
- Boema-kepe ba Maikrofono: Bakeng sa ho hokahanya maekerofounu ea kantle.
- Boema-kepe ba USB: Bakeng sa ho tjhaja le ho fetisa data.
- Slot ea Karete ea MicroSD: Bakeng sa ho kenya karete ea memori.
- Kamore ea Battery: For battery insertion.
Setšoantšo: Haufi view ea Ourlife Action Camera highlighting its 2-inch responsive touch screen. This screen is used for controlling camera functions and reviewke footage.
Tlhophiso
1. Ho tjhaja Betri
Before first use, fully charge the camera battery. Connect the camera to a USB power source (e.g., computer, wall adapter) using the provided USB cable. The charging indicator light will illuminate during charging and turn off when complete.
2. Ho kenya karete ea MicroSD
A MicroSD card (not included) is required for recording. Use a Class 10 or higher MicroSD card, up to 128GB. Insert the card into the MicroSD card slot with the contacts facing the correct direction until it clicks into place.
Hlokomela: For optimal performance, format the MicroSD card within the camera before first use and periodically thereafter.
3. Attaching the Waterproof Case
The camera comes with a waterproof case for underwater use and protection against impacts. Ensure the camera is securely placed inside the case and the latch is firmly closed before submerging or exposing to harsh conditions.

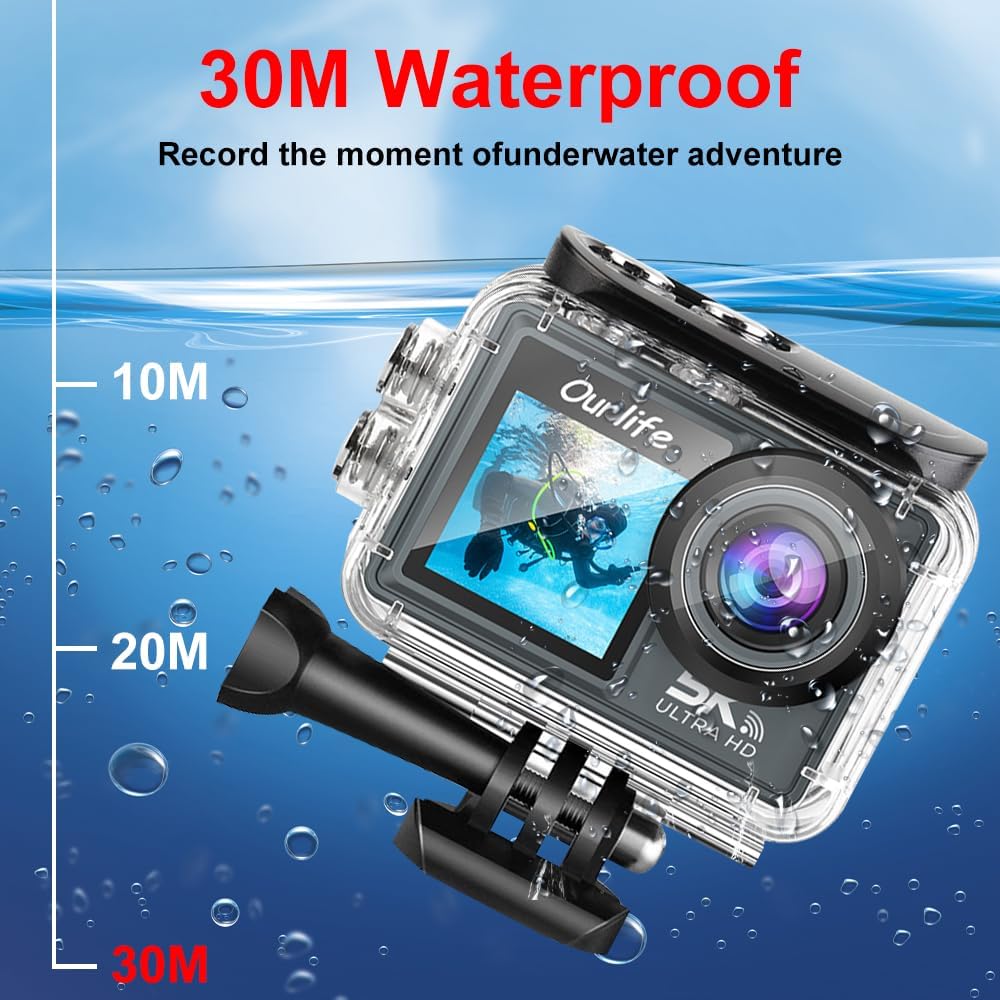

Setšoantšo: Ourlife Action Camera enclosed in its waterproof case, depicted underwater with depth markers indicating its 30-meter waterproof capability. This highlights the camera's suitability for aquatic activities.
4. Ho tima/Ho tima
To power on, press and hold the Power/Mode button for a few seconds. To power off, press and hold the Power/Mode button again until the screen turns off.
Khamera e sebetsa
1. Litaolo tsa Motheo le ho Tsamaisa
Use the Power/Mode button to cycle through different shooting modes (Video, Photo, Playback, Settings). Use the touch screen for menu navigation and selecting options. The Shutter/OK button initiates recording or takes a photo in the respective modes.
2. Ho rekota video
In Video mode, press the Shutter/OK button to start recording. Press it again to stop. The camera supports resolutions up to 5K at 30 frames per second (fps), as well as 4K, 2.7K, 1080P, and 720P options. Adjust resolution in the settings menu.
3. Nka Senepe
In Photo mode, press the Shutter/OK button to take a single photo. The camera offers various photo modes including single shot, automatic shooting, burst mode, and timed photography.
4. Wi-Fi and App Connectivity
Enable Wi-Fi in the camera's settings. Download the official Ourlife app on your smartphone or tablet. Connect your device to the camera's Wi-Fi network. The app allows for remote control, live preview, playback, and sharing of your footage.
5. External Microphone Support
For enhanced audio quality, connect a compatible external microphone to the camera's microphone port. Ensure the microphone is securely connected before recording.
6. Enhanced Image Stabilization (EIS)
The camera features Electronic Image Stabilization (EIS) to reduce blur and shake in your videos, especially during action-packed activities. This feature can be toggled On or Off in the camera settings.
Image: A side-by-side comparison demonstrating the effect of Enhanced Image Stabilization (EIS). The left image shows a clear, stable shot with EIS enabled, while the right image shows a blurred shot with EIS disabled, illustrating the benefit of the feature.
7. Wide-Angle Lens
The 170-degree wide-angle lens captures a broad field of view, ideal for landscapes, group shots, and immersive action footage. Be aware that wide-angle lenses may exhibit some distortion at the edges of the frame.
Setšoantšo: Pontšo ea papisoasing the 170-degree ultra wide-angle capability of the Ourlife Action Camera, demonstrating how it captures a significantly broader scene compared to narrower angles, ideal for expansive views.
Tlhokomelo
- Ho hloekisa: Use a soft, lint-free cloth to clean the camera lens and screens. For the waterproof case, rinse with fresh water after saltwater use and allow to air dry.
- Polokelo: Store the camera in a cool, dry place away from direct sunlight and extreme temperatures. Remove the battery if storing for extended periods.
- Tlhokomelo ea Betri: Avoid fully discharging the battery frequently. Charge the battery regularly, even if not in use, to maintain its lifespan.
Ho batle phoso
| Bothata | Tharollo e ka khonehang |
|---|---|
| Khamera ha e sebetse. | Ensure the battery is charged. Reinsert the battery. |
| Ha e khone ho rekota video/ho nka linepe. | Check if a MicroSD card is inserted and formatted. Ensure sufficient storage space. |
| Boleng bo bobe ba video/senepe. | Clean the lens. Check resolution settings. Ensure adequate lighting. |
| Mathata a khokahano ea Wi-Fi. | Ensure Wi-Fi is enabled on the camera and your device. Restart both devices. Check app permissions. |
| Khamera e hoama kapa e se ke ea arabela. | Remove and reinsert the battery to perform a hard reset. |
Litlhaloso
| Sebopeho | Lintlha |
|---|---|
| Nomoro ea Mohlala | M40TR |
| Qeto ea Video | Ho fihlela ho 5K 30fps (hape le 4K, 2.7K, 1080P, 720P) |
| Botebo bo sa keneleng metsi | Ho fihlela ho limithara tse 30 (ka lebokose le sa keneleng metsi) |
| Boholo ba Skrine e ka Sehloohong | 2.0-inch IPS |
| Secondary Screen Size | 1.3-inch |
| Lense Angle | 170-degree Wide-Angle |
| Khokahano | Wi-Fi, USB |
| Polokelo | MicroSD Card (Class 10 or higher, up to 128GB) |
| External Microphone Support | Ee |
| Ho tsitsisa setšoantšo | Elektronike Ho Tsitsisa Setšoantšo (EIS) |
| Mmala | Ntsho |
Warranty le Tšehetso
For warranty information and technical support, please refer to the official Ourlife websebaka kapa ikopanye le litšebeletso tsa bareki ka kotloloho. Boloka rasiti ea hau ea theko e le bopaki ba hore u rekile litseko tsa waranti.
