1. Selelekela
This manual provides detailed instructions for the setup, operation, and maintenance of your AUSEK TX3 Android Mini PC Box. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your user experience. The AUSEK TX3 is designed to transform your television into a smart entertainment hub, offering access to a wide range of applications and media content.
2. Likahare tsa Sephutheloana
Ha o ntsha dipakete, ka kopo netefatsa hore dintho tsohle tse latelang di kenyelelitsoe sephutheloana sa hao:
- AUSEK TX3 Android Mini PC Box
- Taolo ea Remote (Libetri ha li kenyelelitsoe)
- Adapter ea Phepelo ea Matla
- HD Data Cable (HDMI Cable)
- Bukana ea Mosebelisi
3. Sehlahisoa Overview
The AUSEK TX3 Android Mini PC Box is a compact device designed for high-definition media streaming and smart TV functionalities. It features a robust AMLOGIC S905X3 processor, 4GB RAM, and 64GB ROM, ensuring smooth performance for various applications and 4K content playback.
3.1. Likarolo tsa Sesebelisoa
- Mokhoa oa tšebetso: Android 10
- Motlakase: AMLOGIC S905X3 Quad Core Cortex-A53
- Sehopotso: 4GB RAM, 64GB ea polokelo ea ka hare
- Khokahano: Dual-band Wi-Fi (2.4G/5.8G), Bluetooth 5.0, Ethernet
- Sephetho sa Video: 4K HDR support
3.2. Ports and Connections
Familiarize yourself with the various ports on your AUSEK TX3 device:
- Slot ea TF Card: For expanding storage with a MicroSD card.
- Li-port tsa USB 2.0: Connect external devices such as USB drives, keyboards, or mice.

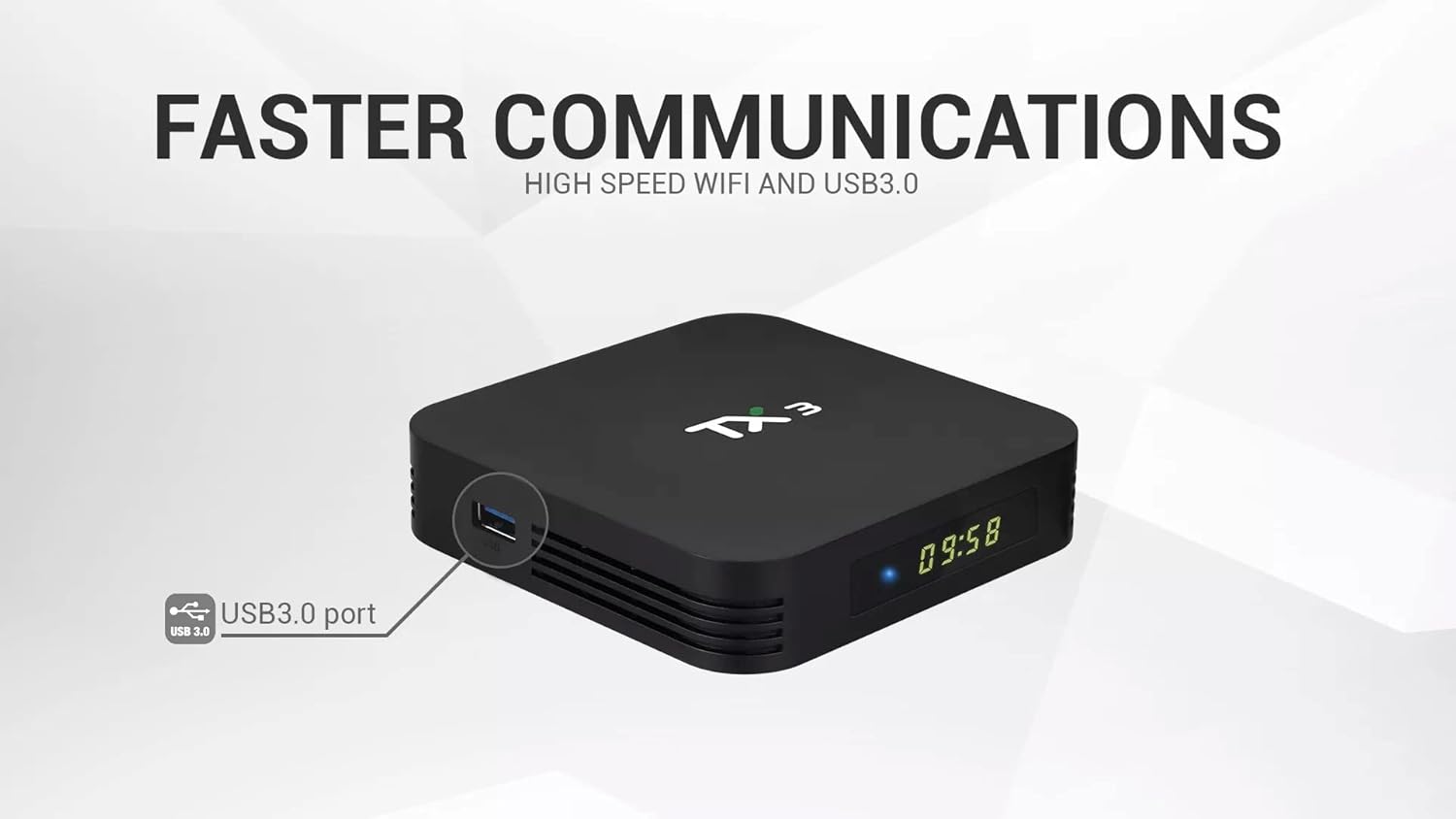

- Boema-kepe ba USB 3.0: Offers faster data transfer speeds for compatible external storage devices.
- HD Output (HDMI): E hokela ho TV kapa pontsho ya hao bakeng sa tlhahiso ya video le modumo.
- Kenyelletso ea Matla (DC 5V): Hokela adaptara ea motlakase e fanoeng.
- Ethernet Port (LAN): Bakeng sa khokahanyo ea marang-rang ea marang-rang.
- Sephetho sa SPDIF: For digital audio output to compatible sound systems.
4. Tataiso ea ho seta
Follow these steps to set up your AUSEK TX3 Android Mini PC Box:
- Hokela ho TV: Connect one end of the provided HDMI cable to the HD Output port on the AUSEK TX3 and the other end to an available HDMI input on your television.
- Kopanya Matla: Plug the power adapter into the DC 5V Power Input port on the AUSEK TX3, then plug the adapter into a wall outlet.
- Hokela Marang-rang (Ha u rata):
- Khokahano ea Mehala: Connect an Ethernet cable from your router to the Ethernet Port on the AUSEK TX3.
- Khokahano e se nang Waele: You will configure Wi-Fi during the initial software setup.
- Matlafatsa: Turn on your television and select the correct HDMI input source. The AUSEK TX3 should automatically power on and display the boot-up screen.
- Wizate ea ho Seta ea Pele: Follow the on-screen instructions to complete the initial setup, which typically includes language selection, Wi-Fi network connection, and Google account login.
5. Litaelo tsa Ts'ebetso
5.1. Basic Navigation
Use the provided remote control to navigate the Android interface. The directional buttons (up, down, left, right) move the cursor, and the 'OK' button confirms selections. The 'Back' button returns to the previous screen, and the 'Home' button takes you to the main home screen.
5.2. Khokahano ea Marang-rang
If you did not connect to Wi-Fi during the initial setup, navigate to Lisebelisoa> Marangrang le Marangrang to select your Wi-Fi network and enter the password. For wired connections, ensure the Ethernet cable is securely connected.
5.3. Ho kenya Dikopo
The AUSEK TX3 comes with the Google Play Store pre-installed. You can download and install a wide variety of applications, including streaming services, games, and utility apps. Navigate to the Play Store icon on your home screen, sign in with your Google account, and browse or search for desired applications.
5.4. Khokahano ea Bluetooth
To connect Bluetooth devices such as headphones, speakers, or game controllers, go to Settings > Connected Devices > Pair new device. Ensure your Bluetooth device is in pairing mode.
5.5. 4K HDR Playback
The AUSEK TX3 supports 4K HDR video playback. For optimal viewing, ensure your television is 4K HDR compatible and that you are playing 4K HDR content. Adjust display settings in Di-setting > Pontsho ha ho hlokahala.
6. Tlhokomelo
To ensure the longevity and optimal performance of your AUSEK TX3 Android Mini PC Box, follow these maintenance guidelines:
- Ho hloekisa: Sebelisa lesela le bonolo, le omileng ho hloekisa sesebelisoa. U se ke ua sebelisa li-cleaner tsa metsi kapa thepa e khorofo.
- Moea oa moea: Ensure the device is placed in a well-ventilated area to prevent overheating. Do not block the ventilation holes.
- Tlosa hantle: Always power off the device using the remote control or by navigating to the power options in the system menu before unplugging it.
- Lintlafatso tsa Software: Hlahloba nako le nako bakeng sa lintlafatso tsa sistimi ho Settings > Device Preferences > About > System update to ensure you have the latest features and security patches.
7. Ho rarolla mathata
If you encounter issues with your AUSEK TX3, refer to the following common problems and solutions:
| Bothata | Lebaka le ka khonehang | Tharollo |
|---|---|---|
| Ha ho matla | Power adapter not connected; power outlet issue | Ensure power adapter is securely connected to the device and a working power outlet. |
| Ha ho pontšo ho TV | Incorrect HDMI input selected; loose HDMI cable | Select the correct HDMI input on your TV. Check HDMI cable connections. Try a different HDMI port or cable. |
| Remote control ha e sebetse | Dead batteries; line of sight blocked | Replace batteries in the remote. Ensure no obstructions between the remote and the device. |
| Ha e khone ho hokela ho Wi-Fi | Incorrect password; router issue; device too far from router | Verify Wi-Fi password. Restart your router. Move the device closer to the router or use a wired Ethernet connection. |
| Applications are slow or crashing | Too many apps running; low storage; outdated app version | Close unused applications. Clear cache for problematic apps (Settings > Apps). Update apps from Google Play Store. Restart the device. |
8. Litlhaloso
Detailed technical specifications for the AUSEK TX3 Android Mini PC Box:
| Sebopeho | Lintlha |
|---|---|
| Brand | AUSEK |
| Mohlala | TX3 |
| Mokhoa oa tšebetso | Android 10 |
| processor | AMLOGIC S905X3 Quad Core Cortex-A53, 1.5 GHz |
| RAM | 4 GB DDR3 SDRAM |
| Polokelo ea ka Hare (ROM) | 64 GB |
| Hard Drive Size (Internal) | 32 GB (Note: This may refer to a partition or specific storage type) |
| Qeto | 4K |
| WiFi | Dual-band (2.4G/5.8G) |
| bluetooth | Bluetooth 5.0 |
| Boema-kepe | USB 2.0, USB 3.0, HD Output (HDMI), Ethernet, SPDIF, TF Card Slot, DC Power Input |
| Litekanyo (L x W x H) | 10 x 10 x 10 Disentimitara |
| Boima ba Ntho | 400 g |
| Lisebelisoa tse lumellanang | Personal Computer (as a mini PC), Televisions |
| Litšebeletso tsa Inthanete tse tšehelitsoeng | Netflix (and others via Play Store) |
9. Tiisetso le Tšehetso
For warranty information and customer support regarding your AUSEK TX3 Android Mini PC Box, please contact the manufacturer directly:
Moetsi: AUSHA EXPORTS P LTD
Aterese: 140, Sector 27, Gurugram-122009, India
Tšehetso ea Bareki: 08048977694
Ka kopo, boloka bopaki ba theko ea hau bakeng sa likopo tsa tiisetso.
