Victrola VM-135-FNT

Buka ea litaelo ea Victrola Montauk Vinyl Record Player (Model VM-135-FNT)

3-Speed Belt Driven Turntable with Stereo Bluetooth Speakers

1. Selelekela

This manual provides detailed instructions for the setup, operation, and maintenance of your Victrola Montauk Vinyl Record Player, Model VM-135-FNT. This belt-driven turntable system offers three playback speeds, integrated Bluetooth connectivity, and includes matching stereo speakers for a complete audio experience. Please read this manual thoroughly before use to ensure proper functionality and longevity of your product.

Victrola Montauk Vinyl Record Player with two external speakers

Figure 1: Victrola Montauk Vinyl Record Player with included stereo speakers.

2. Se ka Lebokoseng

Components of the Victrola Montauk Vinyl Record Player system, including the turntable, two speakers, and cables.

Figure 2: All components included in the Victrola Montauk package.

3. Litaelo tsa ho seta

  1. Unpack Components: Carefully remove all items from the packaging. Ensure all listed components are present.
  2. Place Turntable and Speakers: Position the turntable on a stable, level surface. Place the stereo speakers on either side of the turntable, ensuring they are within reach of the speaker cables.
  3. Install Drive Belt and Platter: Gently place the sub-platter onto the spindle. Carefully loop the drive belt around the motor pulley and the sub-platter. Then, place the main platter on top of the sub-platter.
  4. Balance Tone Arm: Install the counterweight onto the rear of the tone arm. Adjust the counterweight by rotating it until the tone arm is balanced and floats horizontally. Refer to the detailed instructions in the included manual for precise balancing.
  5. Install Dust Cover: Attach the removable dust cover to the hinges at the back of the turntable unit.
  6. Kopanya Libui: Connect the included speaker cables from the turntable's speaker outputs to the input terminals on the back of each stereo speaker. Ensure correct polarity (red to red, black to black).
  7. Kopanya Matla: Plug the power adapter into the DC IN port on the back of the turntable, then plug the adapter into a wall outlet.

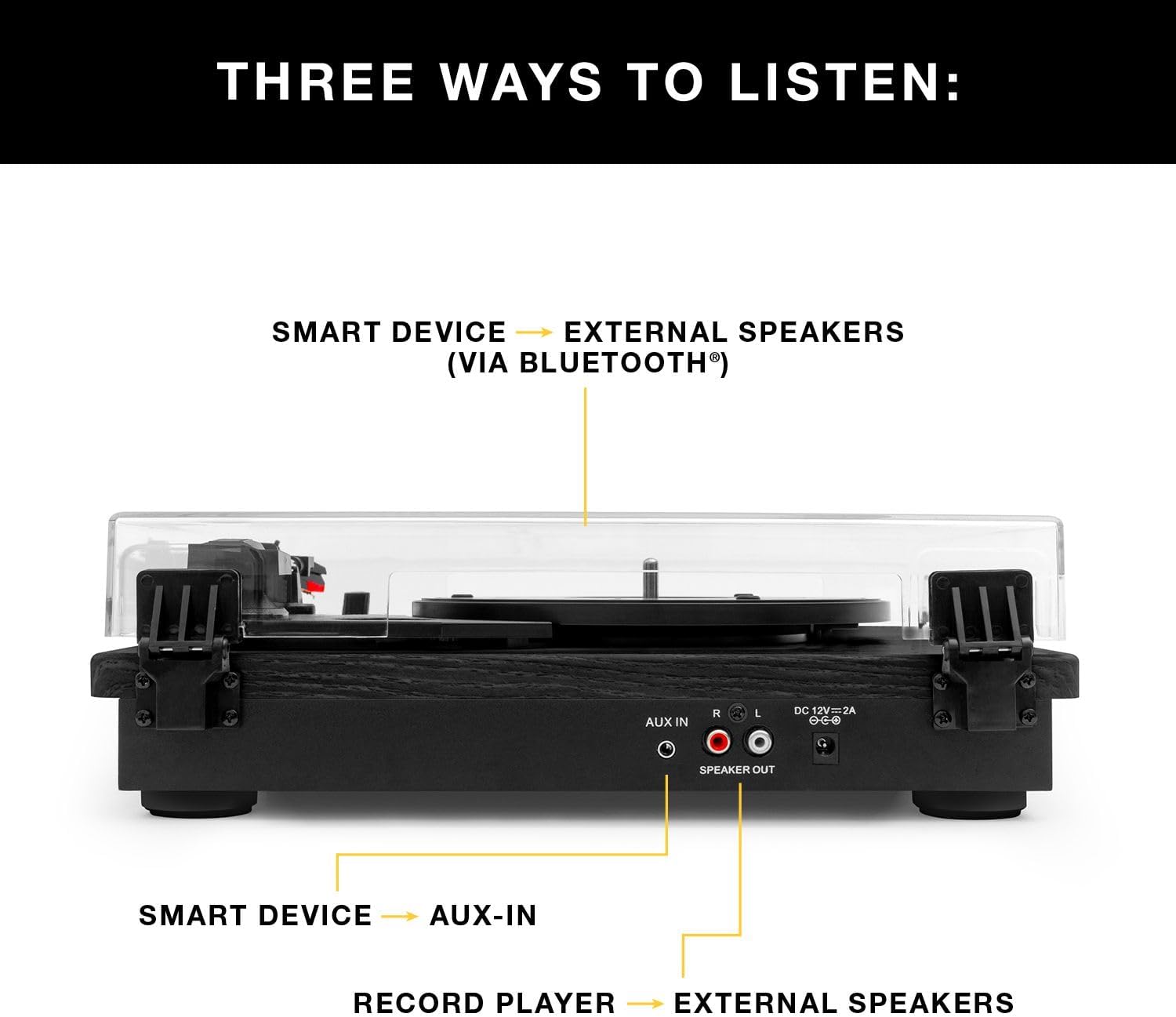

Victrola Montauk turntable with speakers, showing the rear connections for RCA output, aux-in, and power.

Setšoantšo sa 3: Ka morao view of the turntable showing audio output and power connections.

4. Litaelo tsa Ts'ebetso

4.1 Ho Bapala Lirekoto tsa Vinyl

  1. Matlafatsa: Bulela turntable u sebelisa sesebelisoa sa motlakase.
  2. Khetha Lebelo: Choose the appropriate speed (33 1/3, 45, or 78 RPM) for your record using the speed selector switch.
  3. Rekoto ea Sebaka: Carefully place your vinyl record on the platter.
  4. Sebaka sa Tone Letsoho: Release the tone arm lock. Gently lift the tone arm using the cueing lever and position the stylus over the desired track on the record.
  5. Letsoho la Molumo o Tlase: Slowly lower the cueing lever to gently place the stylus onto the record. Playback will begin automatically.
  6. Fetola Bolumo: Use the volume knob on the turntable to adjust the sound level.
  7. Qetella Papali ea ho Bapala: At the end of the record, the tone arm will automatically return to its rest position (if auto-stop is enabled). Alternatively, manually lift the tone arm using the cueing lever and return it to its rest.
Close-up of the turntable's stylus resting on a vinyl record.

Figure 4: Detail of the stylus and record during playback.

4.2 Papali ea Bluetooth

  1. Kenya tshebetsong Bluetooth: Switch the turntable to Bluetooth mode. The Bluetooth indicator will flash, indicating it's ready for pairing.
  2. Kopanya lisebelisoa: On your smart device (phone, tablet, etc.), enable Bluetooth and select
