Nightforce NX8 4-32x50mm F1 Riflescope User Manual

Selelekela

The Nightforce NX8 4-32x50mm F1 Riflescope is engineered for precision and versatility, offering a wide magnification range suitable for various shooting distances. Its robust construction and advanced optical features ensure reliable performance in diverse conditions. This manual provides essential information for the proper setup, operation, and maintenance of your riflescope.

Se ka Lebokoseng

Upon unboxing your Nightforce NX8 riflescope, please verify that all the following components are included:

• Nightforce NX8 4-32x50mm F1 Riflescope
• Tenebraex Flip Up Lens Covers
• Cleaning Fob/Cleaning Cloth
• Multi-Tool for adjustments
• Power Throw Lever (PTL)
• Buka ea Mong'a (tokomane ena)
• Stickers (as supplied by manufacturer)

Figure 1: The Nightforce NX8 4-32x50mm F1 Riflescope as packaged in its box, showing the scope and some accessories.

Tlhophiso

Ho phahamisa Riflescope

Proper mounting is crucial for optimal performance. Ensure the scope is securely attached to your rifle using appropriate rings and bases (not included). Consult a qualified gunsmith if you are unsure about the mounting process. Ensure proper eye relief and reticle level before tightening all components.

Setšoantšo sa 2: Lehlakore view of the Nightforce NX8 riflescope, illustrating its profile and adjustment turrets.

ZeroSet Feature

The ZeroSet feature allows for a rapid and precise return to your established zero point. After zeroing your riflescope, engage the ZeroSet mechanism according to the detailed instructions in the full owner's manual to lock in your elevation setting. This ensures consistent and repeatable adjustments.

Phetoho ea Parallax

The parallax adjustment knob is located on the side of the scope. It allows you to eliminate parallax error by focusing the reticle and the target on the same focal plane. Adjust the parallax from 11 yards to infinity to achieve a clear and sharp image at various distances.

Taolo ea Leseli

The Digillum reticle illumination provides enhanced visibility in low-light conditions. Activate and adjust the brightness levels using the dedicated control on the scope. Refer to the full manual for specific instructions on battery replacement and illumination settings.

Power Throw Lever (PTL)

The included Power Throw Lever (PTL) can be attached to the magnification ring for quick and easy magnification changes. This accessory enhances usability, especially when rapid adjustments are required in the field.

Operating the Riflescope

Phetoho ea Phahamiso

Rotate the magnification ring to select your desired power setting, ranging from 4x to 32x. The first focal plane (F1/FFP) design ensures that the reticle size scales proportionally with the magnification, allowing for consistent holdovers and ranging at any power setting.

Setšoantšo sa 3: Holimo view of the Nightforce NX8 riflescope, highlighting the magnification ring and elevation turret.

TREMOR3 Reticle Use

The HORUS TREMOR3 Illuminated Reticle incorporates the Accuracy 1st - Speed Shooting Formula, designed to simplify wind calls and enable faster target acquisition. Its detailed markings allow for accurate milling of targets. Familiarize yourself with the reticle's features and their application by consulting the dedicated reticle guide in the full owner's manual.

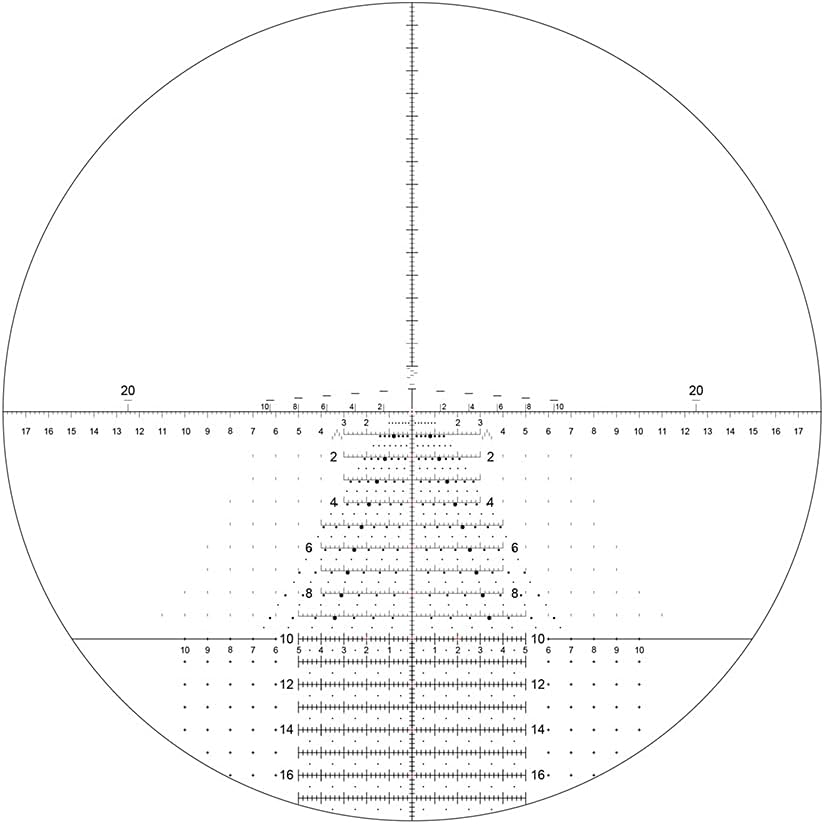

Figure 4: Illustration of the HORUS TREMOR3 Illuminated Reticle pattern, showing its detailed markings for precision aiming and ranging.

Liphetoho tsa Windage le Phahamiso

The riflescope features precise windage and elevation turrets. Each click provides a 0.1 MRAD adjustment. The internal adjustment range is 90 MOA/26 MRAD for elevation and 70 MOA/20 MRAD for windage. Use these turrets to fine-tune your point of impact based on distance and environmental factors.

Tlhokomelo

Regular maintenance ensures the longevity and performance of your Nightforce riflescope.

• Lilense tsa ho hloekisa: Use the provided cleaning cloth or a soft, lint-free cloth with a lens cleaning solution. Gently wipe the lens surfaces to remove dust and smudges. Avoid abrasive materials.
• Ho Hloekisa Kantle: Hlakola bokantle ba sekoupo ka papatsoamp cloth to remove dirt and debris. For stubborn grime, a mild soap solution can be used. Ensure the scope is completely dry before storage.
• Polokelo: Store the riflescope in a dry, cool place, ideally in its original packaging or a protective case, to prevent moisture and dust accumulation.

Ho batle phoso

If you encounter issues with your Nightforce NX8 riflescope, consider the following common troubleshooting steps:

• Unclear Image: Check parallax adjustment, diopter setting, and ensure lenses are clean.
• Reticle Not Illuminating: Verify battery installation and charge. Refer to the full manual for battery type and replacement instructions.
• Inconsistent Point of Impact: Ensure the scope is securely mounted and all screws are tightened to the recommended torque specifications. Check for any obstructions in the barrel or scope path.
• Turret Malfunction: Ensure turrets are not obstructed by debris. If ZeroSet is engaged, disengage it to allow full travel.

For persistent issues or complex problems, it is recommended to consult the comprehensive owner's manual or contact Nightforce customer support.

Litlhaloso

Warranty le Tšehetso

Nightforce Optics stands by the quality and durability of its products. While chances are you'll never need it, your Nightforce riflescope is covered by a Limited Lifetime Warranty. Please take a moment to register your riflescope. You'll find a registration card in the box of your owner's manual or you can register online at NightforceOptics.com/WarrantyRegistration.

For technical assistance, service, or warranty claims, please contact Nightforce Optics directly. Their contact information can be found on their official websetsha kapa bukeng e felletseng ya bukana ya monga yona.
