ESSLNB 15x70 Astronomy Binoculars Instruction Manual

Selelekela

This manual provides detailed instructions for the proper use, setup, and maintenance of your ESSLNB 15x70 Astronomy Binoculars. Please read this manual thoroughly before operating the binoculars to ensure optimal performance and longevity of the product.

Boitsebiso ba Tšireletseho

• Do not look directly at the sun through the binoculars, as this can cause severe and permanent eye damage.
• Keep binoculars away from children without adult supervision.
• Store the binoculars in a dry, cool place to prevent damage to optical components.
• Avoid dropping or subjecting the binoculars to strong impacts.

Litaba tsa Sephutheloana

Netefatsa hore lintho tsohle tse thathamisitsoeng ka tlase li kenyelelitsoe ka har'a sephutheloana sa hau:

• 1x ESSLNB 15x70 Binoculars
• Mokotla oa polokelo oa 1x
• 1x Phone Adapter
• 1x Neck Strap
• 1x Tripod Mounting Adapter
• 2x Objective Lens Caps
• 2x Eyepiece Caps
• 1x Ho Hloekisa Lesela
• 1x Buka ea Litaelo (tokomane ena)

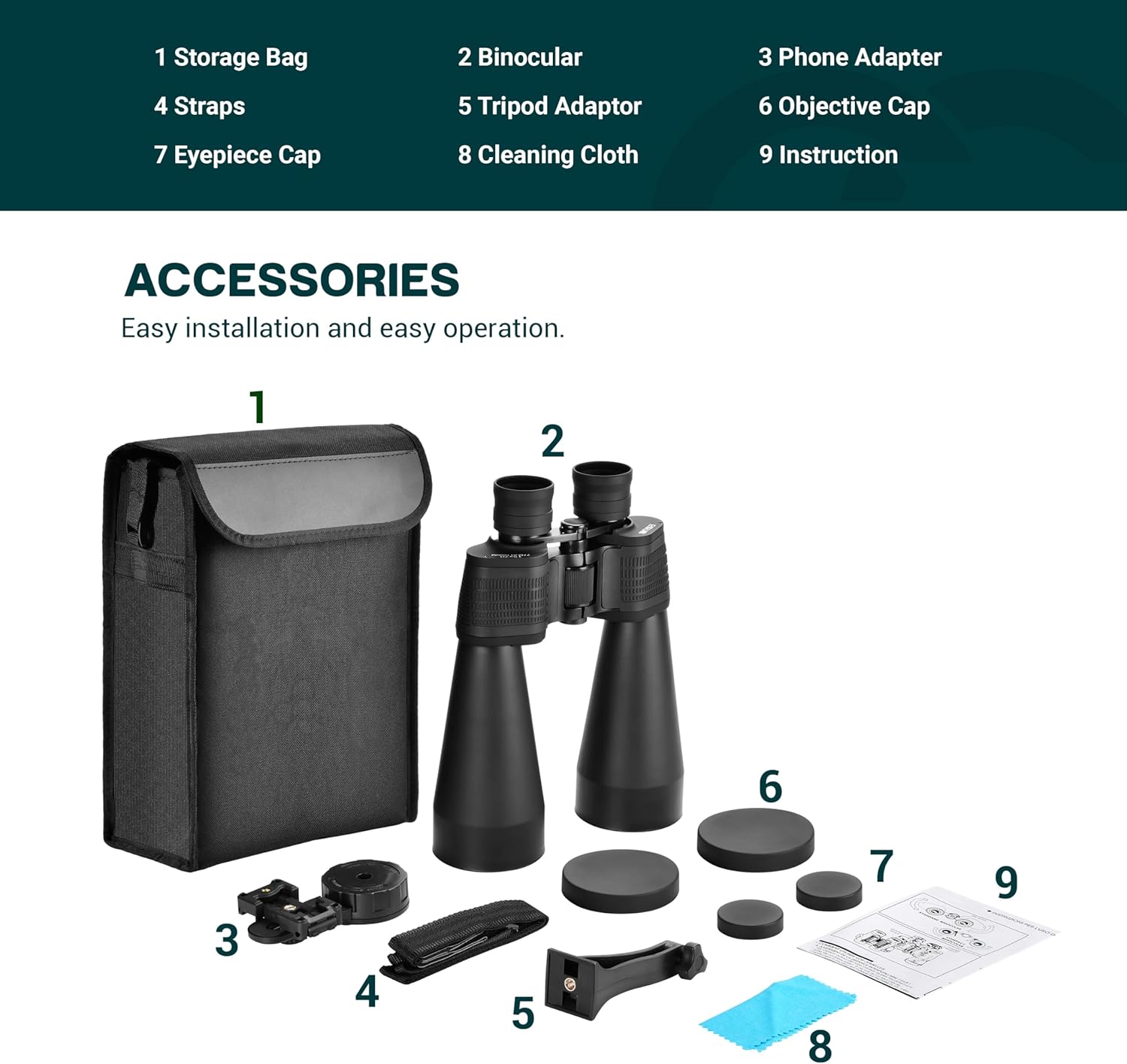

Figure 1: Included accessories for the ESSLNB 15x70 Binoculars.

Sehlahisoa se Felletseview

The ESSLNB 15x70 Astronomy Binoculars are designed for long-distance terrestrial and astronomical viewing, offering 15X magnification and 70mm objective lenses for bright, clear images.

Figure 2: ESSLNB 15x70 Astronomy Binoculars.

Likarolo tsa Bohlokoa:

• Lilense tsa sepheo: The large 70mm lenses gather light for bright images.
• Lisebelisoa tsa mahlo: 25mm green film FMC eyepieces provide a wide field of view le boiketlo viewng.
• Center Focus Wheel: Used for general focusing of both barrels simultaneously.
• Lesale la Tokiso la Diopter: Located on the right eyepiece, used to compensate for differences in vision between your left and right eyes.
• Sebopeho sa Adaptara ea Tripod: Allows for mounting on a tripod for stable viewng.

Figure 3: Binocular components including focus and diopter adjustments.

Tlhophiso

1. Ho Fetola Sebaka sa Interpupillary (IPD)

Hold the binoculars with both hands and look through the eyepieces. Adjust the distance between the two barrels by moving them closer or further apart until you see a single, clear circular field of view. This ensures the binoculars are aligned with your eyes.

2. Focusing the Binoculars

1. Close your right eye and look through the left eyepiece. Rotate the central focus wheel until the image is clear and sharp.
2. Close your left eye and look through the right eyepiece. Rotate the diopter adjustment ring on the right eyepiece until the image is clear and sharp.
3. Now, with both eyes open, the image should be in focus. For subsequent viewing, use only the central focus wheel to adjust for different distances.

Figure 4: Step-by-step focusing procedure.

3. Attaching the Phone Adapter

The included phone adapter allows you to capture images or videos through the binoculars. Attach the adapter to one of the eyepieces, then secure your smartphone to the adapter. Adjust the phone's camera position to align with the eyepiece for a clear view. The adapter features 180° angle and length adjustment for optimal positioning.

Figure 5: Binoculars with phone adapter attached.

4. Attaching the Tripod Adapter

Bakeng sa nako e telele viewing sessions or to minimize shake, attach the binoculars to a tripod using the provided tripod adapter. Screw the adapter into the central hinge of the binoculars, then mount the adapter onto your tripod's quick-release plate or screw mount. This provides steady, hands-free viewng.

Figure 6: Binoculars mounted on a tripod.

Operating the Binoculars

Kakaretso Viewng

Once focused, hold the binoculars steady and scan your desired area. The 15X magnification and 70mm objective lenses provide a large, bright image, suitable for observing distant objects, wildlife, or celestial bodies like the moon and stars.

Viewka likhalase tsa mahlo

The binoculars feature a 17mm long eye relief, which is beneficial for eyeglass wearers. If you wear glasses, you may find it more comfortable to view with your glasses on. Adjust the eyecups by twisting them down or folding them back to achieve the full field of view without vignetting.

Tshebetso ea Leseli le Tlase

The 70mm objective lenses and FMC (Fully Multi-Coated) prism system enhance light transmission, providing better image brightness in low-light conditions compared to binoculars with smaller objective lenses or less advanced coatings.

Tlhokomelo

Ho hloekisa lilense

To clean the lenses, first use a soft brush or compressed air to remove any dust or loose debris. Then, use the provided cleaning cloth or a specialized lens cleaning cloth with a small amount of lens cleaning fluid. Wipe gently in a circular motion. Avoid using abrasive materials or excessive force, as this can scratch the lens coatings.

Polokelo

When not in use, store the binoculars in their carrying bag in a dry, cool, and dust-free environment. Ensure all lens caps are in place to protect the optics from dust and scratches.

Waterproof and Fogproof Features

The binoculars are designed with a water-resistant exterior and are fogproof, offering protection against unexpected rain or humid conditions. While they are robust, avoid submerging them in water.

Ho batle phoso

• Setšoantšo se Lerootho: Re-adjust the central focus wheel and the diopter ring as described in the "Focusing the Binoculars" section.
• Setšoantšo se habeli: Adjust the interpupillary distance (IPD) by moving the barrels closer or further apart until a single circular field of view finyelloa.
• Dark or Dim Image: Ensure objective lens caps are removed. Check for proper lighting conditions. In very low light, image brightness will naturally be reduced.
• Bothata ka Adaptara ea Fono: Ensure your phone's camera is perfectly aligned with the eyepiece. Adjust the adapter's position and length as needed.

Litlhaloso

Warranty le Tšehetso

For warranty information, please refer to the documentation provided with your purchase or contact ESSLNB customer support directly. The product typically includes a standard return policy of 30 days from the date of purchase. Protection plans may also be available for extended coverage.

For technical assistance or further inquiries, please visit the official ESSLNB websebaka kapa ikopanye le lefapha la litšebeletso tsa bareki.
