Jufodrca 9.7-inch HD Touch Screen Car Radio User Manual

1. Selelekela

Thank you for choosing the Jufodrca 9.7-inch HD Touch Screen Car Radio. This manual provides essential information for the proper installation, operation, and maintenance of your new car radio. Please read this manual thoroughly before installation and use to ensure optimal performance and safety. Keep this manual for future reference.

2. Boitsebiso ba Tšireletseho

• Ho khothaletsoa ho Kenya Setsebi: While designed for easy installation, professional installation is recommended to prevent damage to the vehicle's electrical system or the unit itself.
• Ho Khaoha ha Motlakase: Always disconnect the vehicle's battery before performing any installation or wiring work.
• Wiring: Ensure all wiring connections are secure and correctly matched according to the provided wiring diagram. Incorrect wiring can cause malfunctions or damage.
• Tšireletseho ea ho Khanna: O se ke wa sebedisa yuniti ka tsela e tla o sitisa ho kganna. Kamehla beha polokeho ya tsela pele.
• Mocheso: Qoba ho beha yuniti mochesong o feteletseng kapa letsatsing le tobileng ka nako e telele.
• Ho hloekisa: Sebelisa lesela le bonolo, le omeletseng ho hloekisa. Se ke oa sebelisa li-abrasive cleaners kapa solvents.

3. Likahare tsa Sephutheloana

Netefatsa hore lintho tsohle li teng ka har'a sephutheloana:

• Jufodrca 9.7-inch HD Touch Screen Car Radio Unit
• Wiring Harness (as specified in product details)
• GPS Antenna
• 1080P AHD Backup Camera
• Likamore tsa USB
• Lisebelisoa tsa ho kenya

Image: Jufodrca Car Radio unit with wiring harness, GPS antenna, and backup camera.

4. Sehlahisoa Overview

The Jufodrca 9.7-inch HD Touch Screen Car Radio is an advanced multimedia system designed for Cadillac ATS, SRX, XTS, and CTS models from 2013 to 2018. It features a powerful Android 13 operating system, an 8-core processor, 4GB of RAM, and 64GB of internal storage for smooth performance and ampsebaka sa lits'ebetso le mecha ea phatlalatso.

Lintlha tsa bohlokoa li kenyelletsa:

• Pontšo ea boemo bo holimo: A 9.7-inch 1024x768 IPS touchscreen provides vivid colors and wide viewing angles.
• Khokahano ea Smartphone: Supports both wireless and wired Apple CarPlay and Android Auto for seamless access to navigation, music, messages, and calls.
• Tsamaiso e Tsoetseng Pele: Built-in GPS system with support for online and offline maps, utilizing the included GPS antenna.
• Khokahano: Features Bluetooth 5.0 for stable music streaming and hands-free calling, and 5G WiFi for fast internet access.
• Lintlafatso tsa Molumo: Integrated DSP (Digital Sound Processor) with FM/AM/RDS radio for a customizable audio experience.
• Likarolo tsa Tšireletso: Includes a 1080P AHD high-definition backup camera that activates automatically when reversing, and supports existing steering wheel controls (SWC).

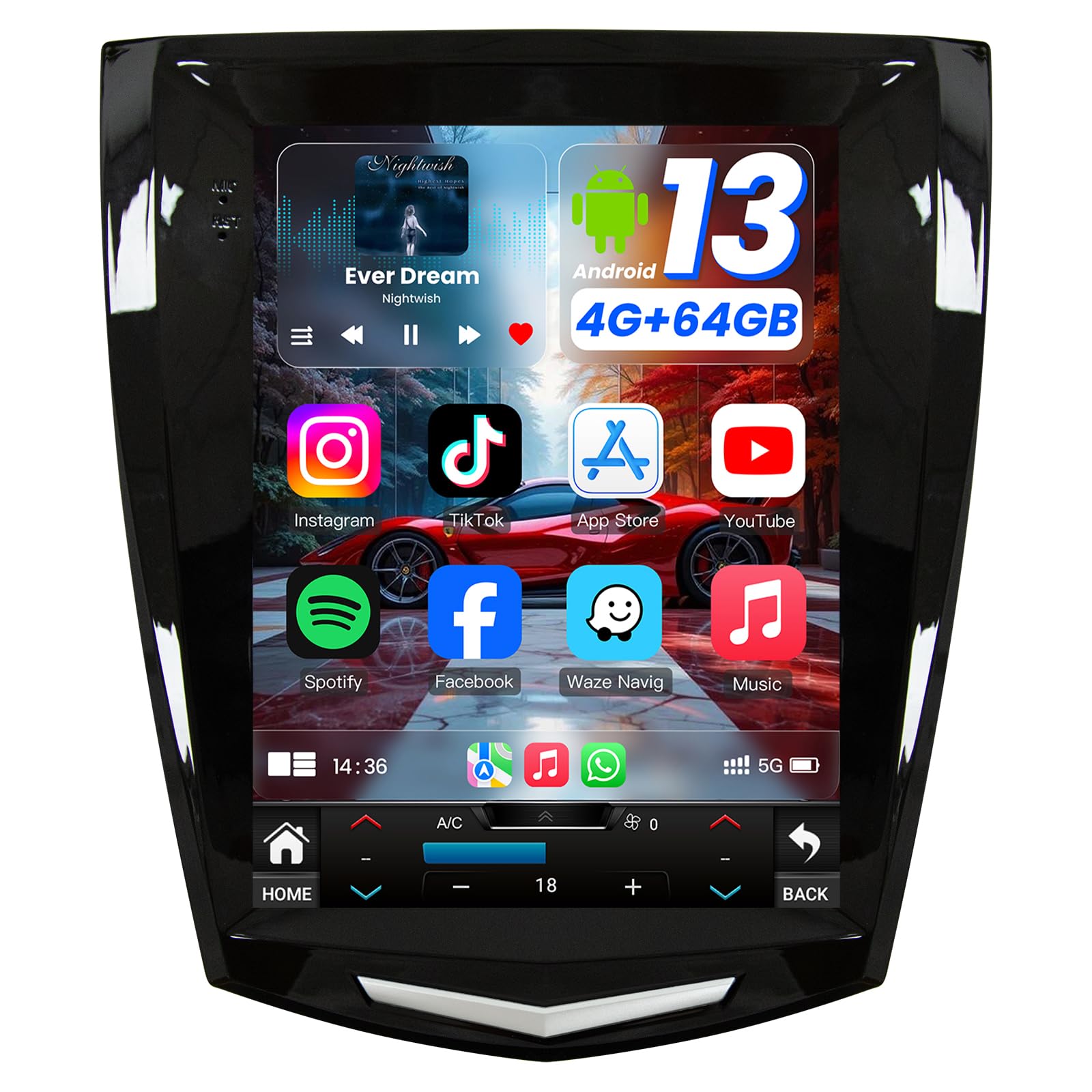

Image: The Jufodrca 9.7-inch car radio integrated into a Cadillac dashboard.

5. Ho kenya

The car radio features a plug-and-play design. Refer to the provided wiring diagram for detailed connections. For a visual guide, scan the QR code in the troubleshooting section or visit the provided link for video tutorials.

5.1 Tlhahlobo ea Pele ho Kemiso

• Compare your original car's central control with the adaptation diagram to ensure compatibility.
• Ensure the AUX audio cable is properly connected. If your car does not have a USB-A or Type-C port, contact customer support.

5.2 Ho theha Sehlopha

1. Remove the original car radio and any necessary trim panels.
2. Remove the brackets from both sides of the factory radio.
3. Attach these brackets to the back of the new Jufodrca unit.
4. Connect the wiring harness, GPS antenna, and backup camera cable.
5. Carefully slide the new unit into the dashboard opening and secure it.

Image: Comparison of the Cadillac dashboard before and after installing the Jufodrca car radio.

Image: Another perspective showing the car radio installation process.

For detailed wiring instructions and video tutorials, please refer to this link: Wiring Diagram and Video Tutorials

6. Tlhophiso ea Pele

6.1 Bulela

After installation, turn on your vehicle's ignition. The car radio should power on automatically. If it does not, check all power connections.

6.2 Litlhophiso tsa Motheo

Upon first use, you may need to configure basic settings such as language, time zone, and date. Navigate to the 'Settings' menu on the touchscreen to adjust these preferences.

7. Litaelo tsa Ts'ebetso

7.1 Wireless CarPlay & Android Auto

Connect your smartphone wirelessly or via USB to access essential apps directly on the 9.7-inch touchscreen. Use voice commands (Siri or Google Assistant) for hands-free control of navigation, music, messages, and calls.

Image: Display showing Wireless/Wired CarPlay and Android Auto functionality.

7.2 GPS Navigation

The built-in GPS system supports both online and offline maps. Connect to WiFi for real-time navigation through apps like Google Maps or Waze. Ensure the GPS antenna is properly installed for optimal signal reception.

Image: GPS navigation display and 5G WiFi connectivity.

7.3 Bluetooth 5.0

Enjoy stable and fast Bluetooth 5.0 connectivity for seamless music streaming and hands-free calling. Pair your smartphone via the Bluetooth settings menu to make and receive calls safely while driving.

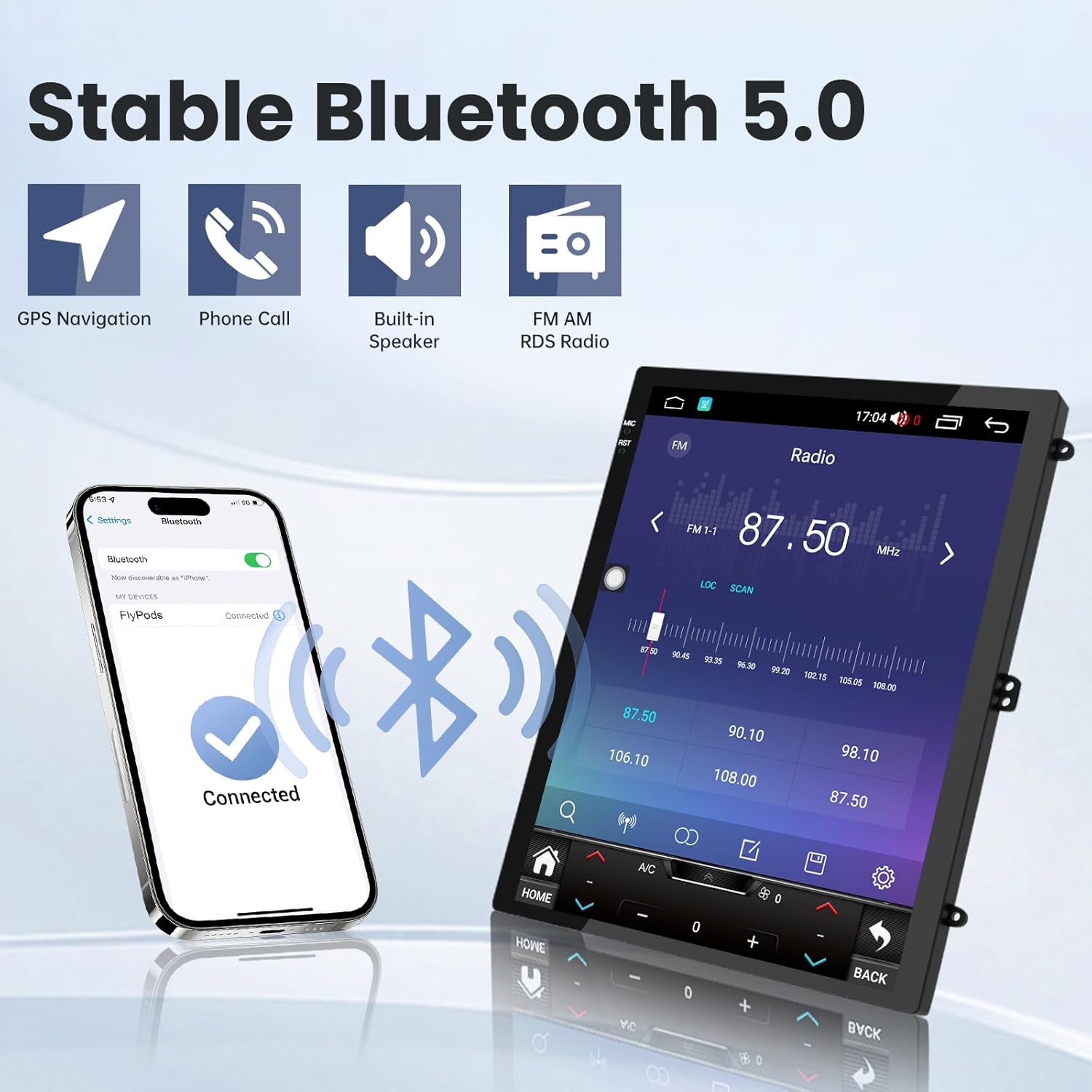

Image: Bluetooth 5.0 pairing screen and FM/AM radio interface.

7.4 FM/AM/DSP/RDS Radio

Tune in to your favorite FM/AM radio stations for news, sports, and weather updates. The integrated DSP allows for advanced sound customization, including equalizer settings and sound field adjustments, to optimize your audio experience.

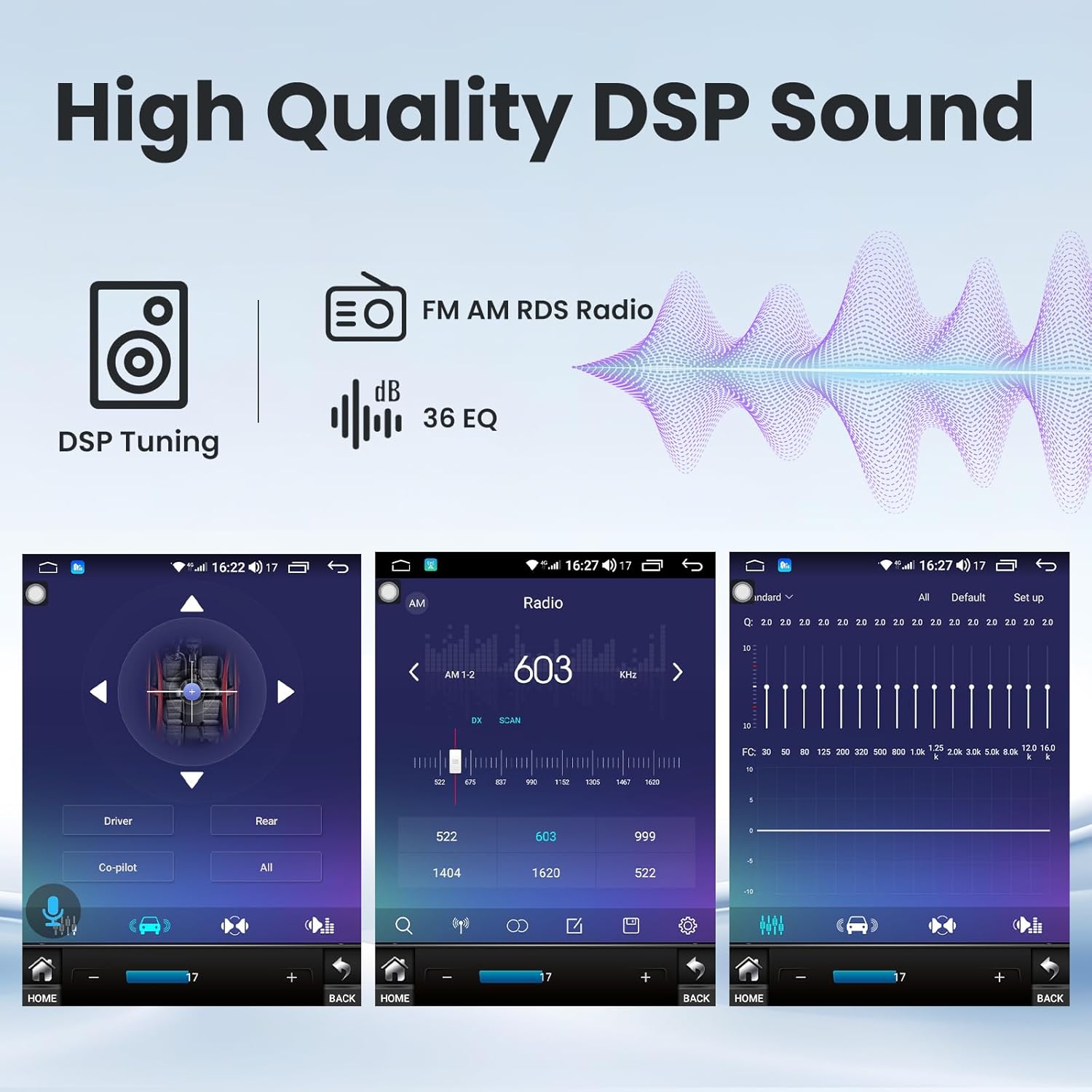

Image: DSP sound tuning interface with equalizer and sound field controls.

7.5 5G WiFi Connectivity

Connect the car radio to a WiFi hotspot to access online features, download apps, and stream content. The 5G WiFi capability ensures faster and more reliable internet access.

7.6 1080P AHD Backup Camera & Steering Wheel Control (SWC)

The included 1080P AHD backup camera automatically displays a clear rear view when shifting into reverse, aiding in safer parking. The unit also supports your vehicle's existing steering wheel controls, allowing you to manage volume, tracks, and calls without taking your hands off the wheel.

Image: Backup camera view and steering wheel control setup screen.

7.7 Arola Skrine Tshebetso

The car radio supports split-screen mode, allowing you to run two applications simultaneously. For example, you can have navigation open on one side and music playback on the other.

8. Ho rarolla mathata

Karolo ena e bua ka mathata a tloaelehileng ao u ka kopanang le 'ona.

• No sound from the radio after installation?
  A: Make sure to follow these two steps: 1. Ensure the AUX audio cable is properly connected. If your car does not have a USB-A or Type-C port, contact customer service. 2. Using the SEL button (original car function selection button) on the steering wheel, first select Radio Media, then use the scroll up/down buttons to locate AUX input/USB, enable AUX input/USB.
• Why do the steering wheel control buttons not work after installation?
  A: 1. Please open the cover above the steering wheel to make sure the steering wheel adapter cable is connected correctly. 2. Make sure that the CANBUS setting is set correctly.
• How to listen to FM/AM?
  A: After installing the new head unit, the original factory CD unit remains in place. If you wish to listen to FM/AM radio, please open the "Car UI" application to access the factory system and listen to the broadcast.
• After installing the radio, where can I control the factory features?
  A: To access and control your vehicle's original factory functions, please follow these steps: 1. Ensure all connections are made correctly according to the wiring diagram. 2. Select the correct CANBUS type based on the size of your original screen. 3. Connect the radio to a stable Wi-Fi network or mobile hotspot. Then, open the App Store and update the following apps: Canbus-Service, Canbus-List, Canbus, and Canbus-Config. Be sure to pull down the page to refresh before updating. Once the updates are complete, please reboot the radio. 4. Scan the QR code to access the video tutorial. 5. After installation and update, locate and open the "Car UI" app on the system interface. From there, you will be able to control and adjust factory-related functions.
• Are some A/C buttons not working on the radio?
  A: The air conditioning button is an factory feature. For vehicles equipped with the 8-inch factory display, please follow QR, then open the "Car UI" app on the head unit. You can operate the A/C functions that are not responding directly within this application.
• How do I install and secure the new radio?
  A: When installing the new radio, first remove the brackets from both sides of the back of the factory radio. Then attach these brackets to the back of our radio's dash kit to securely mount the unit.

Image: Visual guide for common troubleshooting steps.

9. Litlhaloso

10. Tlhokomelo

• Ho hloekisa skrini: Sebelisa lesela le bonolo, le se nang letlapa ho hlakola skrini sa ho thetsa ka bonolo. Bakeng sa smudges manganga, hanyenyane dampKenya lesela ka metsi kapa sesepa se sireletsang skrine. Qoba lik'hemik'hale tse bohale.
• Lintlafatso tsa Software: Periodically check for software updates through the unit's settings menu or the manufacturer's websebaka sa marang-rang ho netefatsa ts'ebetso e ntle ka ho fetisisa le phihlello ea likarolo tse ncha.
• Sistimi bocha: If the unit experiences persistent issues, a factory reset option is available in the settings. Note that this will erase all personal data and settings.
• Tlhokomelo ea Tikoloho: Protect the unit from extreme temperatures, direct sunlight, and excessive moisture.

11. Tiisetso le Tšehetso

Your Jufodrca car radio comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, troubleshooting assistance, or warranty claims, please contact Jufodrca customer service through the retailer where you purchased the product or visit the official Jufodrca websaete bakeng sa lintlha tsa ho ikopanya.

Tšehetso ea Bareki: For any questions or technical issues, our professional customer support team is ready to provide prompt and reliable assistance.
