1. Selelekela
Thank you for choosing the Ufesa CFTB Ceiling Fan. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read these instructions carefully before use and retain them for future reference.
The Ufesa CFTB Ceiling Fan features a powerful yet ultra-silent 40W DC motor, 3 natural wood blades with a 132 cm diameter, and 6 speed settings. It includes an 8-hour programmable timer and versatile Summer/Winter/Natural modes for year-round comfort. All functions are easily controlled via the included remote control.
2. Litaelo tsa Bohlokoa tsa Tšireletso
- Tšireletseho ea Motlakase: Always disconnect power at the main circuit breaker before installation, maintenance, or cleaning. Ensure the fan is properly grounded.
- Kemiso ea Setsebi: Installation should be performed by a qualified electrician to ensure compliance with local electrical codes and safety standards.
- Ho hlongoa: The mounting structure must be capable of supporting the fan's weight (approximately 4.6 kg) and dynamic forces during operation.
- Blade Clearance: Ensure there is adequate clearance between the fan blades and any obstacles (walls, furniture) and a minimum of 2.3 meters (7.5 feet) from the floor to the bottom of the blades.
- Remote Control: Boloka taolo ya remote hole le metsi le mocheso o feteletseng. Ntsha dibetri ha ho hlokahala.
- Ho hloekisa: Sebelisa bonolo, damp cloth for cleaning. Do not use abrasive cleaners or immerse the fan in water.
- Bana le Liphoofolo: Boloka bana le liphoofolo tse ruuoang lapeng hole le fene nakong ea ts'ebetso le ho kenya.
3. Likahare tsa Sephutheloana
Carefully unpack all components and check against the list below. If any items are missing or damaged, contact Ufesa customer support.
- Ceiling Fan Motor Housing
- 3 Natural Wood Blades
- Ho kenya bracket le Hardware
- Ho kheloha
- Moaho
- Remote Control
- Buka ea Tataiso

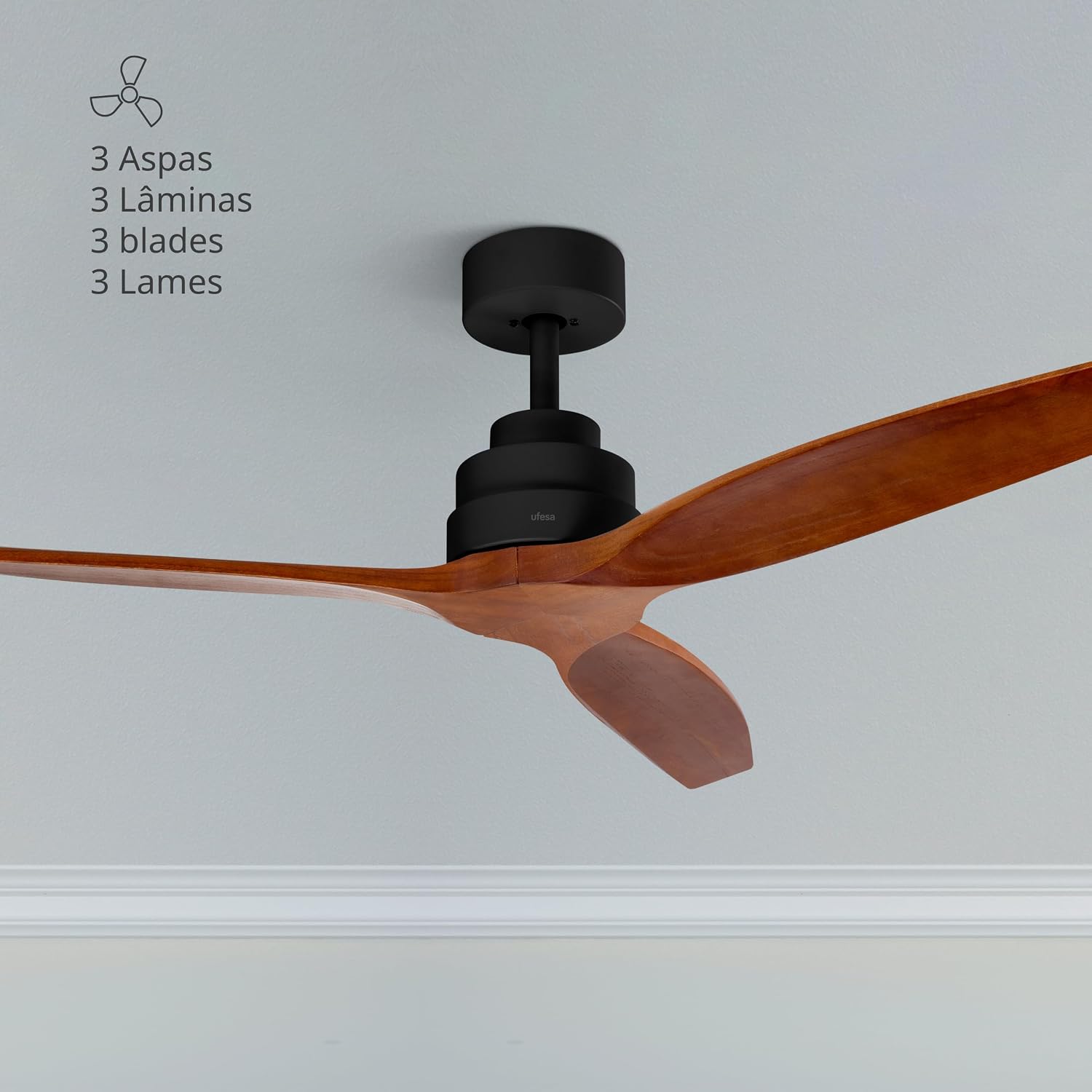

Figure 3.1: Complete Ufesa CFTB Ceiling Fan assembly.
4. Sehlahisoa Overview
Familiarize yourself with the main components of your Ufesa CFTB Ceiling Fan.
Figure 4.1: Detail of the fan's motor housing and blade connection.
Figure 4.2: Fan blade span of 132 cm.
5. Ho kenya
Tlhokomeliso: Installation must be carried out by a qualified electrician. Ensure power is disconnected at the circuit breaker before beginning.
- Lokisetsa Sebaka sa ho Beha: Ensure the ceiling joist or support structure can safely hold the fan's weight. Install the mounting bracket securely to the ceiling.
- Bokella Downrod: Attach the downrod to the motor housing, feeding the electrical wires through the downrod.
- Hang ha Fan: Phahamisa kopano ea fan ka hloko 'me u e fanyehe ho tloha bracket e ntseng e hola.
- Etsa likhokahano tsa Motlakase: Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the separate wiring guide (not included in this manual). Ensure all connections are secure and insulated. The fan operates on 230 VAC and uses a Type F (Schuko) connector type for power supply.
- Hokela Canopy: Slide the canopy up to the ceiling and secure it to cover the wiring connections.
- Kenya li-Blades: Attach the three natural wood blades to the motor housing using the provided screws. Ensure they are firmly secured.
- Khutlisa Matla: Once installation is complete and all connections are checked, restore power at the circuit breaker.
Figure 5.1: Ufesa CFTB Ceiling Fan installed.
6. Ts'ebetso
Your Ufesa CFTB Ceiling Fan is controlled by the included remote control.
Mesebetsi ea Remote Control:
- Tlosa/Tima: Tobetsa konopo ea matla ho bulela kapa ho tima fan.
- Taolo ea Lebelo: Select from 6 fan speeds to adjust airflow intensity.
- Mosebetsi oa Sebali: Set the fan to operate for 1, 4, or 8 hours before automatically turning off.
- Mokhoa oa Lehlabula: Blades rotate counter-clockwise to create a cooling breeze.
- Boemo ba Mariha: Blades rotate clockwise at a low speed to circulate warm air trapped near the ceiling, helping to distribute heat evenly.
- Mokhoa oa Tlhaho: Simulates a gentle, natural breeze by varying fan speeds.

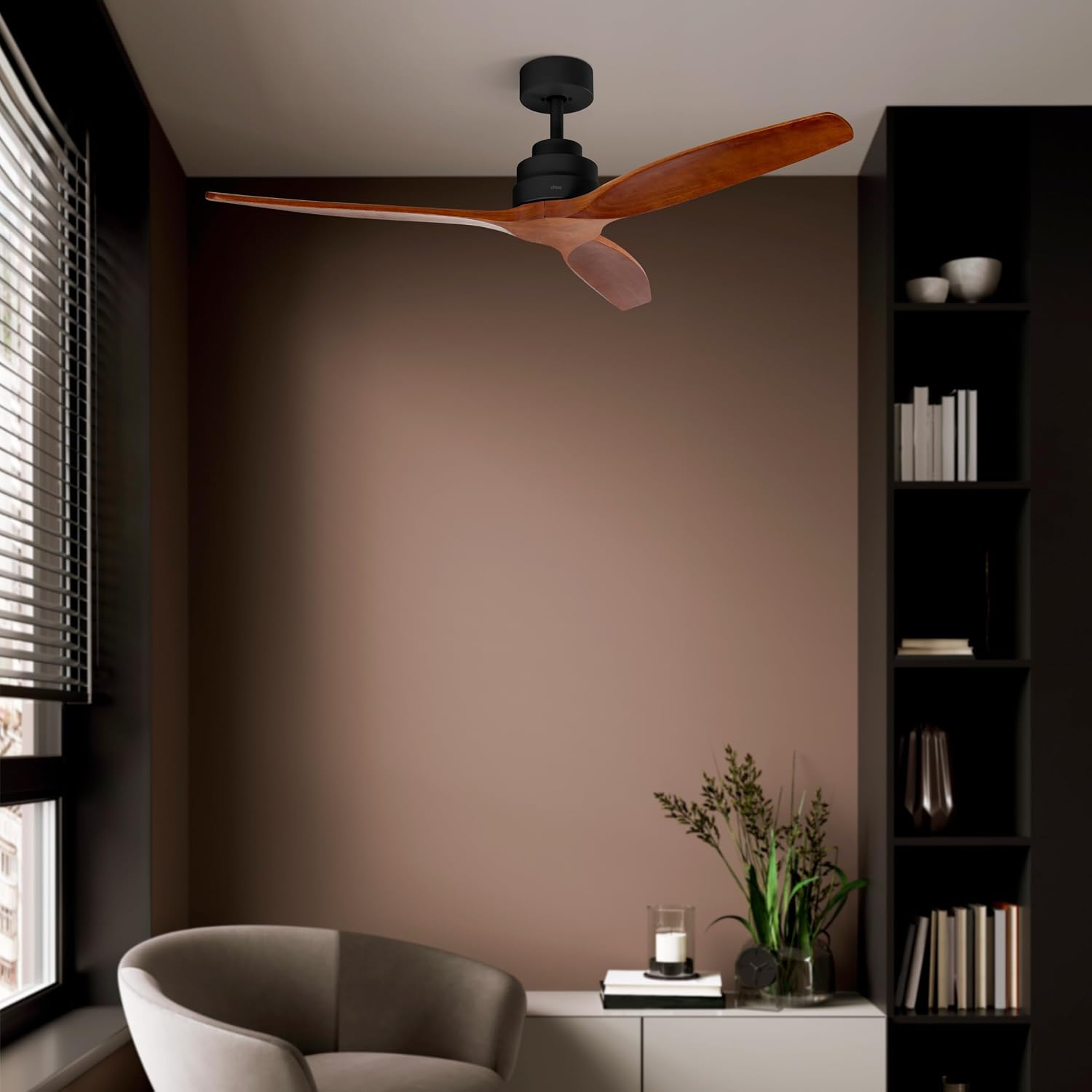

Figure 6.1: Ufesa CFTB Ceiling Fan in a living space.
7. Tlhokomelo
Tlhokomelo ea kamehla e netefatsa ts'ebetso e nepahetseng le bophelo bo bolelele ba fan ea siling ea hau.
- Ho hloekisa: Periodically wipe the fan blades and motor housing with a soft, dry, or slightly damp cloth. Do not use harsh chemicals or abrasive materials. Ensure the fan is turned off and power is disconnected before cleaning.
- Tlhahlobo ea Blade: Check the blades regularly for any signs of damage or looseness. Tighten screws if necessary.
- Matlafatsa Moemeli: The DC motor is permanently lubricated and does not require additional oiling.
- Libetri tsa Remote Control: Replace the remote control batteries when the range decreases or the fan becomes unresponsive.
8. Ho rarolla mathata
If you encounter any issues with your Ufesa CFTB Ceiling Fan, refer to the table below for common problems and solutions.
| Bothata | Lebaka le ka khonehang | Tharollo |
|---|---|---|
| Fan ha e qale | Ha ho phepelo ea motlakase; Wiring e hlephileng; Betri ea remoutu e tlase. | Check circuit breaker; Verify wiring connections (consult electrician); Replace remote control batteries. |
| Fane e a thekesela | Loose blades or mounting hardware; Unbalanced blades. | Ensure all screws are tight; Check for bent blades; Use a blade balancing kit (not included). |
| Remote control ha e sebetse | Low or dead batteries; Obstruction between remote and receiver. | Replace batteries; Ensure clear line of sight to the fan's receiver. |
| Lerata le sa tloaelehang | Loose screws; Internal component issue. | Check and tighten all screws; If noise persists, contact customer support. |
9. Litlhaloso
| Sebopeho | Tlhaloso |
|---|---|
| Brand | Ufesa |
| Mohlala | CFTB |
| Matla | 40 W |
| Palo ea Mabelo | 6 |
| Palo ea Li-Blades | 3 |
| Blade Material | Lehong la Tlhaho |
| Diameter tsa Fan | 132 cm |
| Mofuta oa Enjene | Ultra-silent DC Motor |
| Mosebetsi oa nako | 1, 4, 8 lihora |
| Mekhoa ea ho sebetsa | Summer, Winter, Natural |
| Mokhoa oa ho Laola | Remote Control |
| Boholo ba Kamore bo khothalelitsoeng | 12 ho isa ho 25 m² |
| Boemo ba Lerata | 45 li-decibels |
| Moqtage | 230 VAC |
| Mofuta oa ho Beha | Thaba ea Ceiling |
| Boima ba Sehlahisoa | 4.6 lik'hilograma |
10. Tiisetso le Tšehetso
Ufesa products are designed and manufactured to the highest quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Ufesa website. If you require technical assistance, spare parts, or have any questions not covered in this manual, please contact Ufesa customer support through their official channels.
