Spartan Mowers 439-0009-03 Frame Brake Mounting Bracket Instruction Manual

Selelekela

This manual provides essential information for the proper installation, maintenance, and understanding of the Spartan Mowers 439-0009-03 Frame Brake Mounting Bracket. This genuine Spartan Mowers part is designed to ensure the correct function of the brake system on compatible mower models.

Boitsebiso ba Tšireletseho

Always prioritize safety when working with machinery. Read and understand all safety warnings in your mower's main operator's manual before attempting any installation or maintenance. Disconnect the spark plug wire(s) and remove the ignition key before working on the mower to prevent accidental starting. Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.

• Ensure the mower is on a flat, stable surface.
• Allow the engine and all components to cool down before handling.
• Haeba o sa kholiseha ka mokhoa ofe kapa ofe, buisana le setsebi sa litšebeletso se tšoanelehang.

Litaba tsa Sephutheloana

Netefatsa hore likarolo tsohle li teng le hore ha lia senyeha ha u bula sephutheloana.

• 1x Spartan Mowers 439-0009-03 Frame Brake Mounting Bracket
• Note: Additional hardware (bolts, nuts, washers) may be required for installation and is typically not included with the bracket itself. Refer to your mower's parts diagram for specific hardware requirements.

Setšoantšo sa 1: Pele view of the Spartan Mowers 439-0009-03 Frame Brake Mounting Bracket. This image shows the primary structure of the bracket, highlighting its shape and mounting points.

Ho lumellana

This frame brake mounting bracket is compatible with the following Spartan Mowers models:

• Spartan Mowers 2021 RZ HD
• Spartan Mowers 2022 KGZ XD

Always verify the part number against your mower's specific model and year to ensure correct fitment.

Ho seta le ho Kenya

The 439-0009-03 Frame Brake Mounting Bracket is a critical component for the proper functioning of your mower's brake system. Installation typically involves replacing an existing damaged or worn bracket. Due to the nature of this part and its integration into the mower's frame and brake assembly, professional installation is recommended. If you choose to install it yourself, proceed with caution and refer to your specific mower model's service manual for detailed instructions and torque specifications.

General Installation Steps (Consult Mower Manual for Details):

1. Lokisetsa Mower: Park the mower on a level surface, engage the parking brake, turn off the engine, remove the ignition key, and disconnect the spark plug wire(s).
2. Access the Brake Assembly: Depending on your mower model, you may need to remove certain covers or components to gain access to the brake assembly and the existing mounting bracket.
3. Remove Old Bracket: Carefully unbolt and remove the old frame brake mounting bracket. Note the orientation and connection points of any associated brake linkages or cables.
4. Install New Bracket: Position the new Spartan Mowers 439-0009-03 bracket in the correct orientation. Secure it using the appropriate hardware (not included). Ensure all bolts are tightened to the manufacturer's specified torque.
5. Reconnect Brake Components: Reattach any brake linkages, cables, or other components that were disconnected during removal. Verify that all connections are secure and move freely.
6. Test Brake Function: Before operating the mower, thoroughly test the brake system to ensure it engages and disengages correctly and provides adequate stopping power.
7. Reassemble Mower: Reinstall any covers or components that were removed to access the brake assembly.

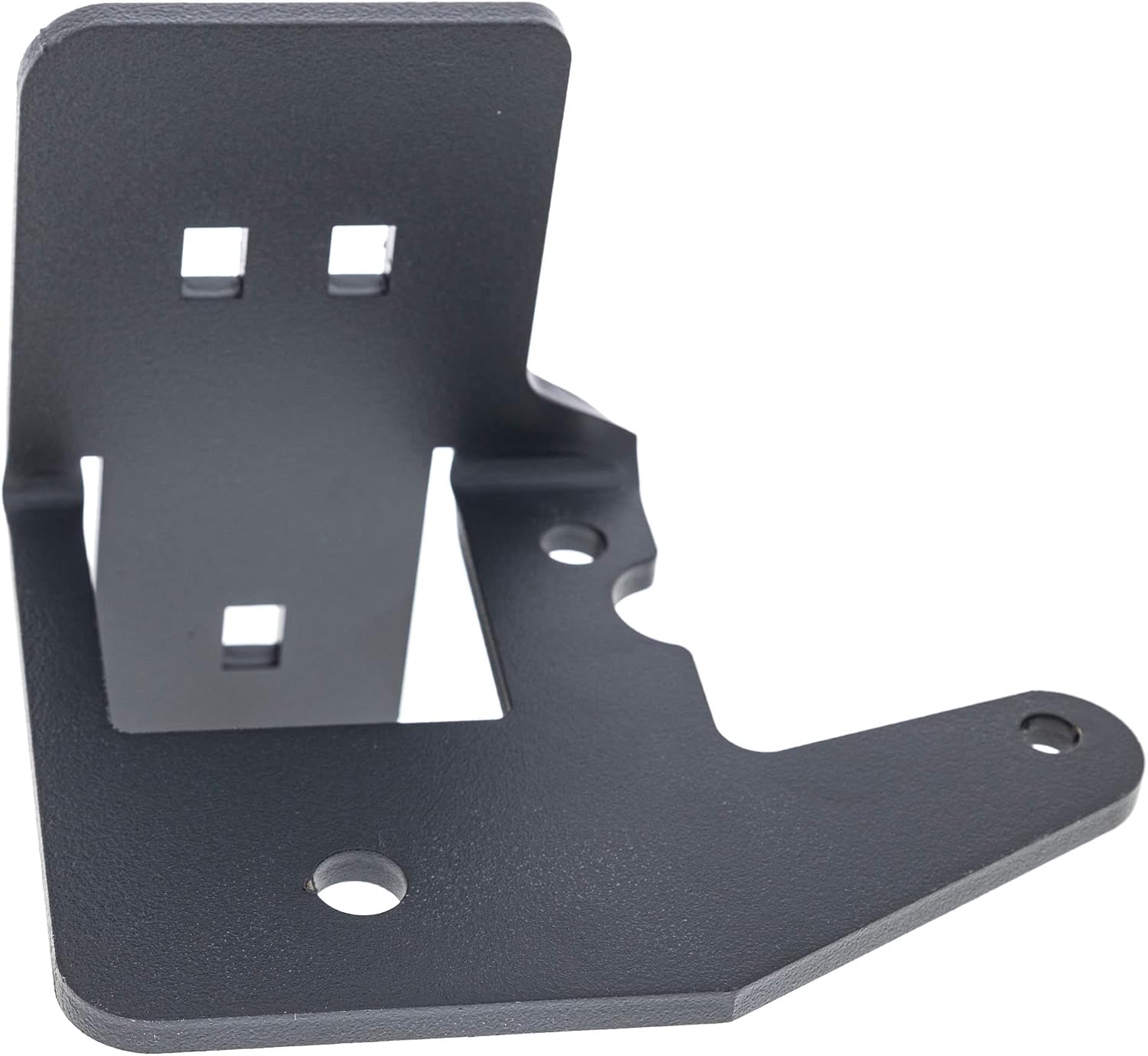

Setšoantšo sa 2: Lehlakore view of the Spartan Mowers 439-0009-03 Frame Brake Mounting Bracket. This angle provides a clearer view of the bracket's depth and specific attachment points.

Setšoantšo sa 3: Angled view of the Spartan Mowers 439-0009-03 Frame Brake Mounting Bracket. This perspective helps in understanding the overall geometry and how it integrates into the mower's frame.

Operating the Brake Mounting Bracket

The 439-0009-03 Frame Brake Mounting Bracket is a static component that supports the brake mechanism. It does not have operational controls itself. Its function is to securely hold the brake components in place, allowing the mower's brake system to operate effectively when engaged by the user.

Tlhokomelo

Regular inspection of the frame brake mounting bracket is recommended as part of your mower's routine maintenance schedule. Check for the following:

• Tšenyo 'Meleng: Look for cracks, bends, or any signs of impact damage to the bracket.
• Corrosion: Inspect for rust or corrosion, especially in areas exposed to moisture or chemicals.
• Li-Fasteners tse Lokolohileng: Ensure all bolts and nuts securing the bracket are tight. Re-torque if necessary according to your mower's service manual.
• Apara: Check for excessive wear around mounting holes or pivot points if applicable.

Replace the bracket immediately if any significant damage or wear is observed to maintain safe operation of your mower.

Ho batle phoso

If you experience issues with your mower's brake system, the frame brake mounting bracket should be inspected as a potential cause, though issues are more commonly related to brake pads, cables, or linkages. If the brake system is not functioning correctly:

• Brake Not Engaging/Disengaging: Check for obstructions, bent linkages, or stretched cables. Ensure the mounting bracket is not bent or damaged, which could misalign components.
• Unusual Noises from Brake Area: Inspect the bracket and surrounding components for loose parts or contact points that could be causing noise.
• Tšenyo e Bonahalang: If the bracket itself is visibly bent, cracked, or broken, it must be replaced.

For comprehensive brake system troubleshooting, refer to your Spartan Mowers operator's and service manuals or consult a certified technician.

Litlhaloso

About Spartan Mowers

Spartan Mowers is dedicated to producing durable and dependable mowing equipment. This video provides an overview of the brand's commitment to quality and innovation in their manufacturing process.

Boitsebiso ba Warranty

This Spartan Mowers part is covered by the manufacturer's standard warranty. For specific details regarding warranty coverage, duration, and claims procedures, please refer to the warranty documentation provided with your original mower purchase or contact Spartan Mowers customer support directly. Keep your purchase receipt as proof of purchase.

Tšehetso ea Bareki

For technical assistance, parts inquiries, or warranty support, please contact Spartan Mowers customer service. You can find contact information on the official Spartan Mowers websaete kapa ka morekisi oa hau ea lumelletsoeng.

Websebaka: www.spartanmowers.com (Tlhokomeliso: Sena ke setšoantšisi URL, please refer to official product documentation for actual support contact details.)
