Saurium 48800 Bench Grinder 150W 125mm Instruction Manual

1. Selelekela

Kea leboha ha u rekileasing the Saurium 48800 Bench Grinder. This manual provides important information for the safe operation, assembly, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before using the bench grinder and keep it for future reference. Proper use and care will ensure long-lasting performance and safety.

2. Litaelo tsa Tšireletso

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Failure to follow these instructions may result in serious injury or damage to the tool.

• Wear Eye Protection: Always wear safety goggles or a face shield to protect against flying debris.
• Wear Hearing Protection: Sebelisa li-earplug kapa li-earmuff nakong ea ts'ebetso.
• Secure Workpiece: Kamehla sebelisa clamps or a vise to hold the workpiece firmly. Never hold it by hand.
• Maintain Work Area: Boloka sebaka seo u sebeletsang ho sona se hloekile, se khantšitsoe hantle, 'me se se na bohlasoa.
• Avoid Loose Clothing: Do not wear loose clothing, gloves, ties, or jewelry that can get caught in moving parts.
• Hakolla Matla: Always unplug the grinder before making adjustments, changing wheels, or performing maintenance.
• Use Correct Wheels: Only use grinding wheels rated for the grinder's maximum RPM and suitable for the material being ground.
• Hlahloba Mabili: Before each use, inspect grinding wheels for cracks, chips, or damage. Replace damaged wheels immediately.
• Adjust Tool Rests: Ensure tool rests are adjusted to within 1.5 mm (1/16 inch) of the grinding wheel.
• U se ke Ua Tlameha: Do not force the tool. Allow the grinder to reach full speed before applying the workpiece.
• Ho beha fatše: Ensure the grinder is properly grounded.
• Boloka Balebeli sebakeng: Never operate the grinder without all guards and eye shields properly installed.

3. Sehlahisoa Overview

The Saurium 48800 Bench Grinder is an electric tool designed for sharpening, grinding, and deburring various materials. It features two abrasive wheels for versatile applications.

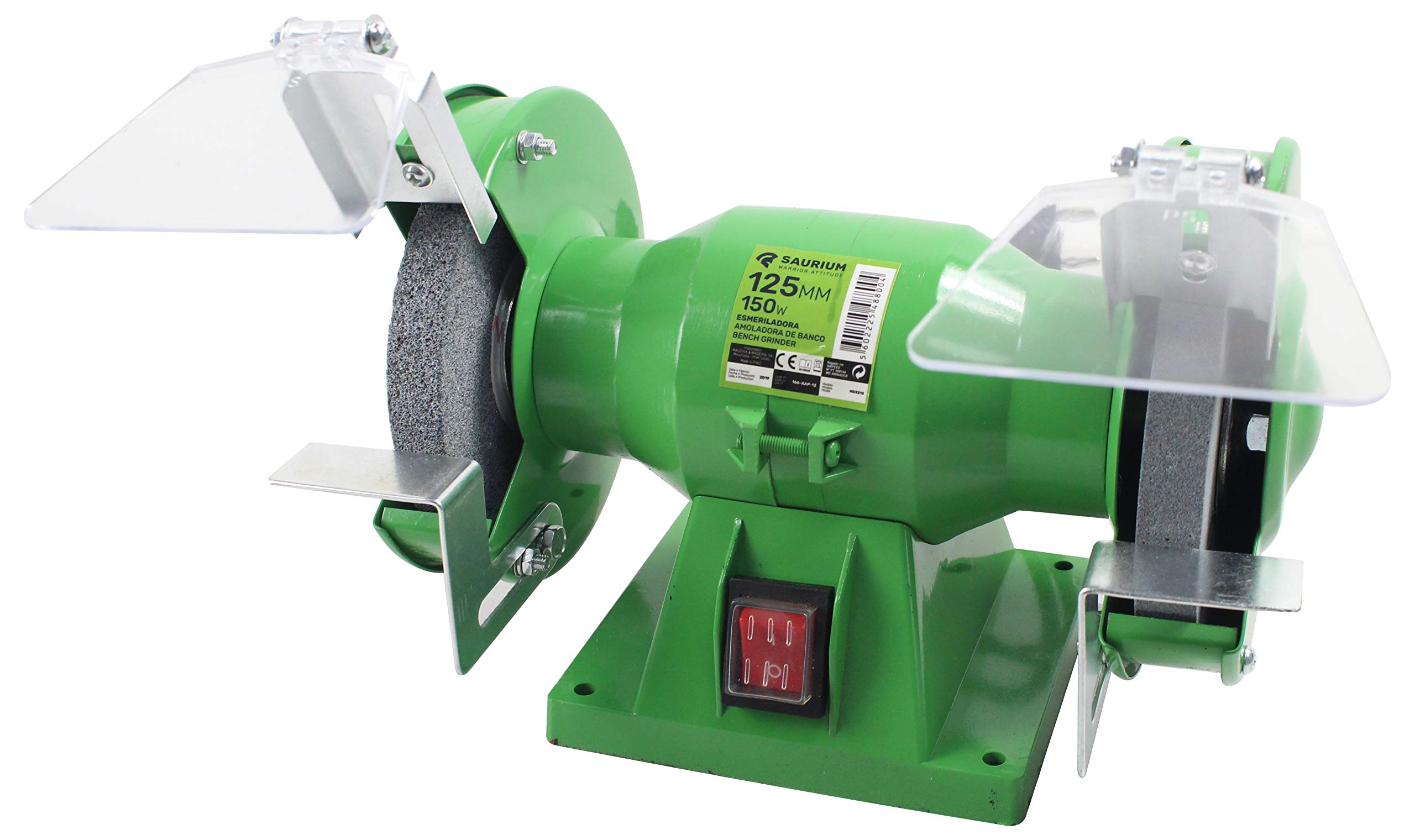

Setšoantšo sa 1: The Saurium 48800 Bench Grinder shown in its product packaging. The image displays the green-colored grinder with two grinding wheels, safety guards, and an orange power switch, indicating its compact design and readiness for use.

Likaroloana:

• Grinding Wheels (2)
• Balebeli ba Mabili
• Lithebe tsa Mahlo
• Tool Phomotse
• Phetoho ea Motlakase (E ON/OFF)
• Motor Housing
• Mounting Base
• Mohala oa Matla

4. Seta

Before operating the bench grinder, ensure it is properly assembled and securely mounted.

4.1 Ho phutholla le ho hlahloba

1. Carefully remove the grinder and all components from the packaging.
2. Inspect the tool for any shipping damage. Do not operate if damaged.
3. Verify all listed components are present.

4.2 Mounting the Grinder

For safe operation, the bench grinder must be securely bolted to a workbench or stand.

1. Position the grinder on a sturdy, level surface.
2. Mark the locations for the mounting bolts through the holes in the base.
3. Drill appropriate holes in the workbench.
4. Secure the grinder using bolts, washers, and nuts (not included). Ensure it is stable and does not wobble.

4.3 Installing Eye Shields and Tool Rests

Attach the eye shields and tool rests according to the diagrams in the separate assembly sheet (if provided). Ensure they are securely fastened and adjusted correctly.

• Adjust the tool rests so they are no more than 1.5 mm (1/16 inch) from the grinding wheel surface.
• Position the eye shields to provide maximum protection without obstructing your view ea workpiece.

5. Litaelo tsa Ts'ebetso

Always ensure all safety precautions are followed before operating the grinder.

5.1 Pele o qala

• Confirm the grinder is securely mounted.
• Check that wheel guards, eye shields, and tool rests are properly installed and adjusted.
• Inspect grinding wheels for damage.
• Ensure the power cord is in good condition and connected to a grounded outlet.
• Wear appropriate personal protective equipment (PPE): safety glasses, hearing protection, and suitable clothing.

5.2 Grinding Procedure

1. Turn on the grinder using the power switch. Allow the wheels to reach full operating speed (2950 RPM) before beginning work.
2. Hold the workpiece firmly against the tool rest.
3. Gently bring the workpiece into contact with the grinding wheel. Apply light, even pressure.
4. Move the workpiece slowly and consistently across the face of the wheel to ensure even wear and prevent grooving.
5. Avoid applying excessive pressure, which can overheat the workpiece, damage the wheel, or stall the motor.
6. For sharpening, maintain the correct angle against the wheel.
7. After completing the task, turn off the grinder and wait for the wheels to come to a complete stop before leaving the machine.

6. Tlhokomelo

Regular maintenance ensures the longevity and safe operation of your Saurium Bench Grinder. Always disconnect the power before performing any maintenance.

6.1 Ho hloekisa

• After each use, clean dust and debris from the grinder using a brush or compressed air.
• Hlakola bokantle ka papatsoamp lesela. U se ke ua sebelisa li-solvents.
• Boloka menyako ea moea e le ntle ho tšitiso.

6.2 Ho Sila Lebili la Phetolo

Replace grinding wheels when they become worn, chipped, or cracked.

1. Tlosa grinder ho tloha phepelong ea motlakase.
2. Remove the wheel guard and any retaining nuts or flanges.
3. Carefully remove the old grinding wheel.
4. Install the new wheel, ensuring it is correctly seated and the flanges are tightened securely but not excessively.
5. Reattach the wheel guard and adjust the tool rest to the new wheel.
6. Before use, perform a test run to ensure the wheel runs true and without excessive vibration.

6.3 Dressing Grinding Wheels

Ha nako e ntse e ea, mabili a silang a ka benya kapa a tsoa ho pota. Sebelisa lebili ho khutlisa bokaholimo ba lebili le sebopeho.

• With the grinder running, gently apply the wheel dresser to the face of the grinding wheel.
• Move the dresser slowly and evenly across the wheel until the surface is clean and flat.

7. Ho rarolla mathata

This section addresses common issues you might encounter with your bench grinder.

8. Litlhaloso

Technical data for the Saurium 48800 Bench Grinder:

• Mohlala: 48800
• Matla: 150W
• Moqtage: 230V / 50Hz
• Lebelo le sa Kenoeng: 2950 RPM
• Grinding Wheel Dimensions: 125 x 16 x 12.7 mm (Diameter x Thickness x Bore)
• Mohloli oa Matla: Khoele ea Motlakase
• Boima ba 'mele: Hoo e ka bang 4 kg
• Moetsi: Madeira & Madeira, SA

9. Tiisetso le Tšehetso

Bakeng sa tlhahisoleseding ea tiisetso, tšehetso ea tekheniki, kapa lipotso tsa tšebeletso, ka kopo sheba karete ea tiisetso e kenyelelitsoeng sehlahisoa sa hau kapa ikopanye le morekisi oa hau. Boloka rasiti ea hau ea theko e le bopaki ba theko.

For further assistance, please visit the official Saurium websebaka kapa ikopanye le lefapha la litšebeletso tsa bareki.
