Ivation Portable Digital HD LCD Microscope User Manual

1. Selelekela

Kea leboha ha u rekileasing the Ivation Portable Digital HD LCD Microscope. This device is designed for detailed observation and analysis, offering up to 220x optical and 500x digital magnification. Featuring a 3.5-inch LCD screen, 14MP HD sensor, and photo/video capture capabilities, it is suitable for various applications including education, inspection, and hobby use. Please read this manual thoroughly before use to ensure proper operation and to maximize the lifespan of your microscope.

Litlhokomelo tsa Tšireletso

• Do not expose the device to extreme temperatures, humidity, or corrosive substances.
• Avoid dropping or subjecting the microscope to strong impacts.
• Keep the lens clean and free from dust. Use a soft, lint-free cloth for cleaning.
• Do not attempt to disassemble or modify the microscope, as this will void the warranty.
• Sebelisa adaptara ea motlakase le betri feela.

2. Likarolo tsa Sehlahisoa

Familiarize yourself with the various parts of your Ivation Digital Microscope:

• 3.5-inch LCD Display Screen
• Control Buttons (Power, Menu, OK, Navigation)
• Shebisa Wheel
• Leseli la LED le feto-fetohang
• Adjustable Specimen Stage with Clips
• Stage Adjustment Knob (Up/Down)
• Khadi ea MicroSD Slot
• USB Port (for PC connection and charging)
• HDMI Khumo Port
• Rechargeable Li-ion Battery (pre-installed or included)
• Adapter ea Matla
• Cable ea USB
• Cable ea HDMI
• Software CD (for Windows XP SP2 driver, other OS are driver-free)

Pele view of the Ivation Digital Microscope, highlighting the LCD screen and control buttons.

Lehlakore view of the Ivation Digital Microscope, showing the adjustable stage and focus knob.

3. Seta

3.1 Ho Kenya le ho tjhaja Betri

1. Ensure the microscope is powered off.
2. Locate the battery compartment on the underside of the base.
3. Open the compartment cover and insert the provided Li-ion battery, ensuring correct polarity.
4. Koala sekoaelo sa karolo ea betri ka mokhoa o sireletsehileng.
5. Connect the power adapter to the microscope's USB port and plug it into a power outlet to charge the battery. The charging indicator light will illuminate. A full charge takes approximately 3 hours and provides about 2 hours of operation.

3.2 Ho Matlafatsa/Ho tima

• To power on, press and hold the Power button (usually marked with a circle and vertical line) on the LCD screen panel until the screen illuminates.
• To power off, press and hold the Power button again until the screen turns off.

3.3 Ho kenya karete ea MicroSD

• Insert a MicroSD card (not included, up to 32GB recommended) into the MicroSD card slot on the side of the LCD unit. Ensure the card is inserted in the correct orientation until it clicks into place.
• Ho e tlosa, sutumelletsa karete ka hare butle ho fihlela e hlahella.

3.4 Ho hokela Khomphutheng (USB)

• Connect the microscope to your computer using the supplied USB cable.
• Matla ho microscope.
• On the microscope's LCD screen, navigate to the menu and select 'PC Camera' mode. For Windows XP SP2, you may need to install the driver from the included CD. For Windows 7/8 and Mac OS 10.5-10.9, it is typically driver-free.
• Open a compatible camera application on your computer to view phepelo e phelang.

3.5 Connecting to a Television/Monitor (HDMI)

• Connect the microscope to an HDMI-enabled display using the supplied HDMI cable.
• Power on the microscope and the external display.
• Select the correct HDMI input on your television or monitor. The microscope's display will mirror on the external screen.

4. Ts'ebetso

4.1 Placing a Specimen

• Place the specimen directly onto the adjustable stage.
• Use the metal clips to secure slides or other flat objects if necessary.

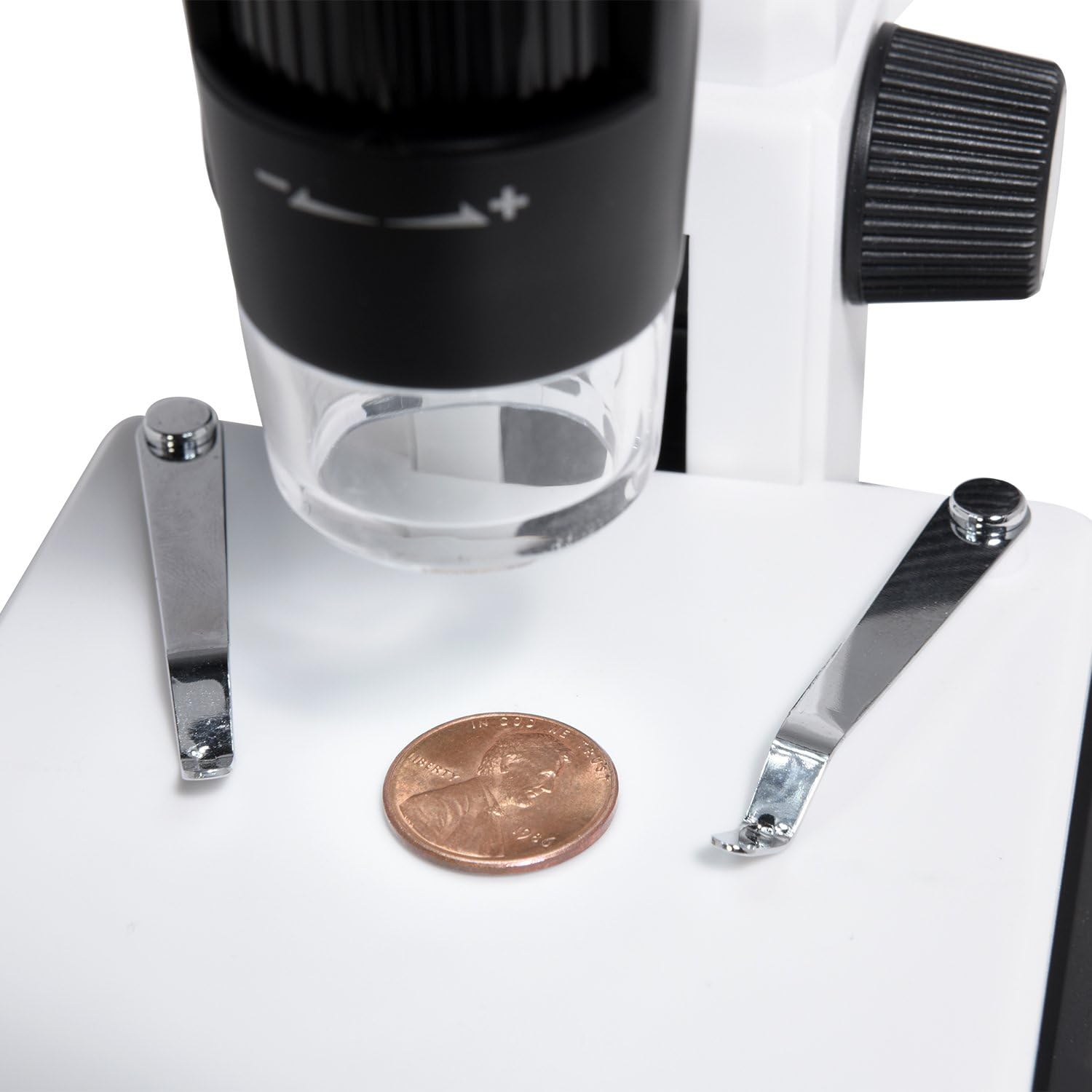

A penny placed on the adjustable stage for microscopic examination.

4.2 Adjusting Focus and Magnification

• Use the large focus wheel on the side of the microscope to bring the image into sharp focus on the LCD screen.
• The microscope offers 220x optical magnification. For additional magnification up to 500x, use the digital zoom function via the control buttons on the LCD panel.
• Adjust the height of the specimen stage sebelisa stage adjustment knob (Up/Down) for larger or smaller objects, or to achieve initial focus before fine-tuning with the focus wheel.

Adjusting the focus wheel for clear observation.

Close-up of the LCD screen displaying a highly magnified section of a dollar bill.

4.3 Adjusting LED Illumination

• The microscope features 8 adjustable LED lights.
• Use the LED brightness control dial (typically on the side of the LCD unit) to increase or decrease the illumination intensity for optimal viewng.

4.4 Ho nka linepe le livideo

• Ensure a MicroSD card is inserted.
• Ka phela view mode, press the 'OK' button to capture a still image.
• To record video, press the 'Menu' button to enter video mode, then press 'OK' to start/stop recording.
• Captured photos and videos are saved to the MicroSD card.

5. Tlhokomelo

5.1 Ho hloekisa

• Lense: Use a soft, lint-free cloth or lens paper to gently wipe the lens. For stubborn smudges, a small amount of lens cleaning solution can be applied to the cloth, not directly to the lens.
• 'Mele: Wipe the microscope body with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• Skrine: Clean the LCD screen with a soft, dry, anti-static cloth.

5.2 Polokelo

• Store the microscope in a cool, dry place away from direct sunlight and dust.
• Haeba o boloka nako e telele, tlosa betri ho thibela ho dutla.
• Keep the microscope in its original packaging or a protective case to prevent damage.

6. Ho rarolla mathata

• Ha ho Matla:
  - Ensure the battery is properly installed and charged.
  - Verify the power adapter is securely connected if operating via AC power.
• Ha ho setšoantšo skrineng:
  - Check if the microscope is powered on.
  - Adjust the focus wheel.
  - Ensure the LED lights are on and adjusted to an appropriate brightness.
• Setšoantšo se Lerootho:
  - Adjust the focus wheel carefully.
  - Ensure the specimen is properly positioned on the stage.
  - Clean the lens if smudges are visible.
• Cannot Capture Photos/Videos:
  - Verify a MicroSD card is inserted and has sufficient free space.
  - Ensure the MicroSD card is not locked (read-only).
  - Format the MicroSD card if issues persist (this will erase all data).
• No Image on PC/TV:
  - For PC connection, ensure 'PC Camera' mode is selected on the microscope and the correct software is running on the computer. Check USB cable connection.
  - For TV connection, ensure the HDMI cable is securely connected to both devices and the correct HDMI input is selected on the TV.

7. Litlhaloso

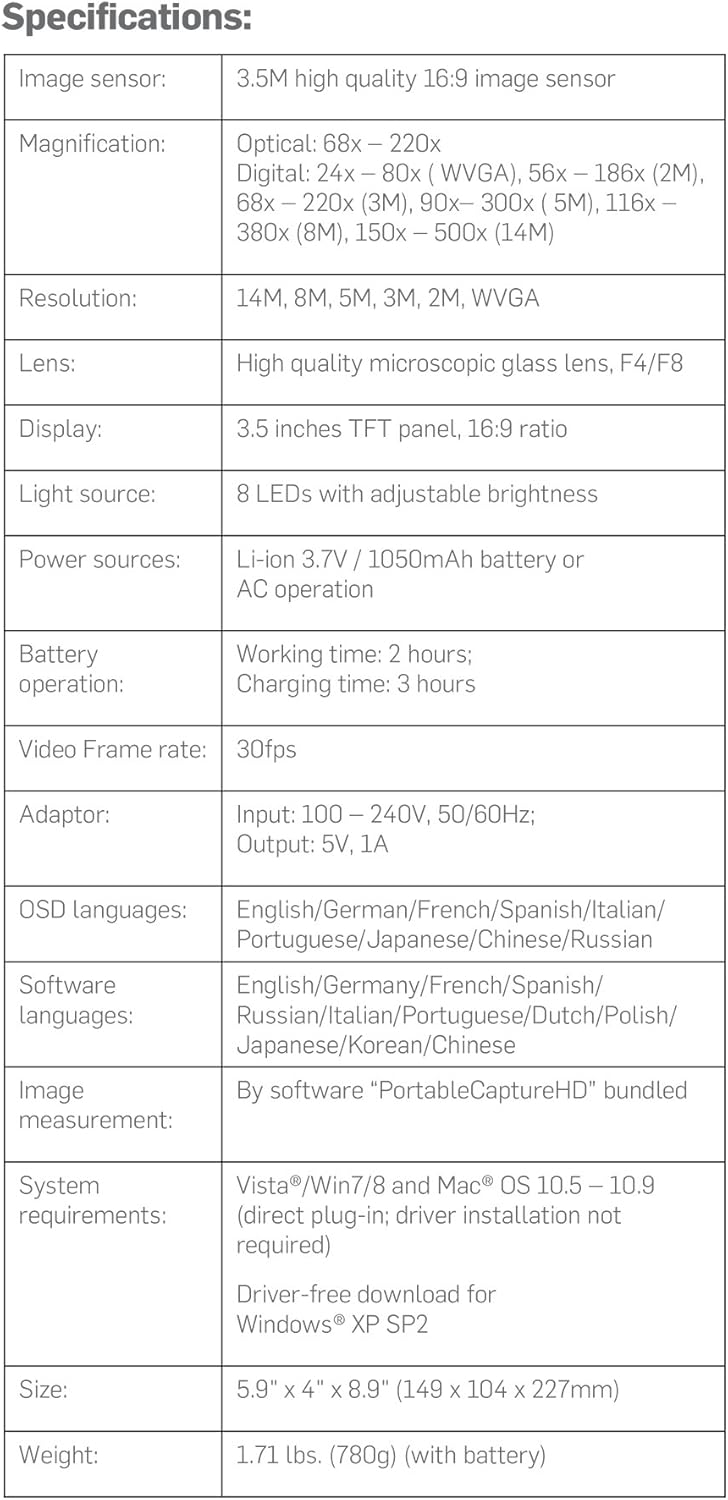

Detailed technical specifications of the Ivation Digital Microscope.

8. Warranty & Ts'ehetso

Ivation products are designed to provide reliable performance. For specific warranty information regarding your Ivation Portable Digital HD LCD Microscope, please refer to the warranty card included in your product packaging or visit the official Ivation websebaka.

If you encounter any issues or have questions not covered in this manual, please contact Ivation Customer Support:

• Websebaka: Ivation Store on Amazon
• Lengolo-tsoibila: Sheba sephutheloana sa sehlahisoa kapa websaete bakeng sa lintlha tsa puisano.
• Mohala: Sheba sephutheloana sa sehlahisoa kapa websaete bakeng sa lintlha tsa puisano.

Please have your model number (IVAMS04HD) and purchase date ready when contacting support.
